194EA801753
BRAND: NHP

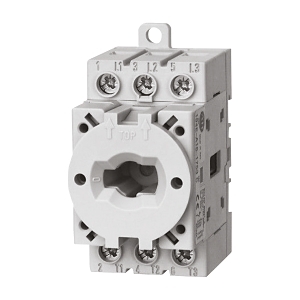

Allen-Bradley 194E Disconnect Switch Body, Base/DIN Rail mount 3 Pole 80A


$297.80 List price: $395.40
+

Product Name/Title: Allen-Bradley 194E Disconnect Switch Body, Base/DIN Rail mount 3 Pole 80A

Brand: NHP

SKU: 194EA801753

Alternatively Known As: 194E Disconnect Switch, 3 Pole Disconnect Switch, NHP Disconnect Switch

Technical Specifications
  • Max Rated Operation Voltage: 690 V
  • Rated Permanent Current: 80 A
  • Rated Control Supply Voltage: 400-690 V
  • Rated Operation Power at AC 3,400 V: 30 kW
  • Rated Operation Power at AC 23,400 V: 37 kW
  • Rated Short Time Withstand Current: 2500 kA
  • Rated Insulation Voltage: 600 V
  • Rated Impulse Withstand Voltage: 8 kV
  • Frequency: 60 Hz
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 230mm x 120mm x 175mm
  • Weight: 2.5 kg
Key Features
  • 3 Pole design with a rated permanent current of 80 A.
  • Rated operation voltage up to 690 V.
  • IP20 protection degree for front side.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery and equipment control
  • Commercial: Power distribution systems
  • General: Any application requiring reliable disconnection of electrical circuits
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for high efficiency and reliability in electrical systems.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 194E Disconnect Switch Body is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable electrical disconnection.
