194EE161753

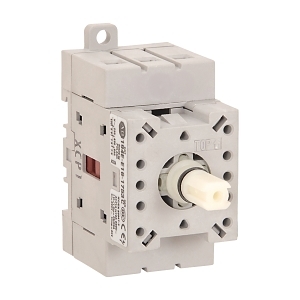

Allen-Bradley 194E Disconnect Switch Body, Front/Door mount 3 Pole 16A

$89.60 List price: $119.00
+ −
30 Days Return Delivery Options
Weight: 0.500 kg

Product Name/Title: Allen-Bradley 194E Disconnect Switch Body, Front/Door mount 3 Pole 16A

Brand: NHP

SKU: 194EE161753

Alternatively Known As: Disconnect Switch, Switch Disconnector, 3 Pole Switch

Technical Specifications
  • Max Rated Operation Voltage: 690 V
  • Rated Permanent Current: 16 A
  • Rated Operation Power at AC 3, 400 V: 5.5 kW
  • Rated Operation Power at AC 23, 400 V: 7.5 kW
  • Rated Short Time Withstand Current: 800 kA
  • Rated Insulation Voltage: 690 V
  • Rated Impulse Withstand Voltage: 8 kV
  • Type of Electrical Connection: Screw connection
  • Rated Operating Voltage: 400-690 V
  • Conditioned Rated Short Circuit Current: 20 kA
  • Number of Auxiliary Contacts (Normally Closed): 0
  • Number of Auxiliary Contacts (Normally Open): 0
  • Motor Drive Integrated: No
  • Voltage Release Optional: No
  • Device Construction: Built-in device fixed built-in technique
  • Padlock Locking: Yes
  • Connectable Conductor Cross Section: 1-10 mm²
  • Rated Surrounding Temperature Without Derating: 60 °C
  • Storage Temperature: -40-80 °C
  • Dimensions (H x L x W): 64mm x 90mm x 45mm
  • Weight: 0.5 kg
Key Features
  • 3 Pole design with a maximum rated operation voltage of 690 V.
  • Rated permanent current of 16 A.
  • IP20 protection degree for front side.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Suitable for use in various industrial applications requiring reliable disconnection.
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules and electrical installation.
Environmental Benefits
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 194E Disconnect Switch Body is available now for immediate purchase. Ideal for industrial applications requiring reliable disconnection.
