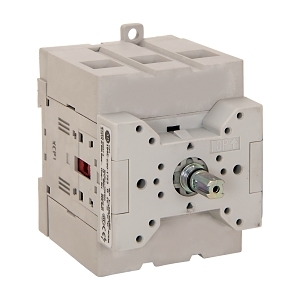

Product Name/Title: Allen-Bradley 194E Disconnect Switch Body, Front/Door mount 3 Pole 80A
Brand: NHP
SKU: 194EE801753
Alternatively Known As: 194E Load Break Switch, 3 Pole Disconnect Switch, NHP Disconnect Switch
Technical Specifications
- Max Rated Operation Voltage: 690 V
- Rated Permanent Current: 80 A
- Rated Operation Power at AC 3, 400 V: 30 kW
- Rated Operation Power at AC 23, 400 V: 37 kW
- Rated Short Time Withstand Current: 2500 kA
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 8 kV
- Type of Electrical Connection: Screw connection
- Rated Operating Voltage: 400-690 V
- Conditioned Rated Short Circuit Current: 30 kA
- Degree of Protection: IP20
- Rated Surrounding Temperature: 60 °C
- Storage Temperature: -40-80 °C
- Dimensions (H x L x W): 90mm x 90mm x 72mm
- Weight: 1.5 kg
Key Features
- 3 Pole design with a rated current of 80A.
- Built-in device fixed built-in technique for enhanced reliability.
- IP20 protection rating for front side.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Suitable for use in manufacturing and processing facilities
- Commercial: Ideal for commercial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules.
Environmental Benefits
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 194E Disconnect Switch Body is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
