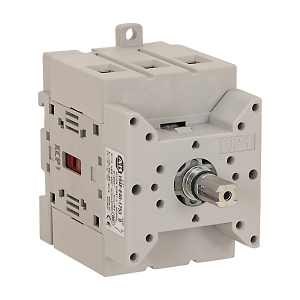

Product Name/Title: Allen-Bradley 194E Disconnect Switch Complete, Front/Door mount, Type G Act. BK/GY 3 Pole 63A
Brand: NHP
SKU: 194EE6317536G
Alternatively Known As: Disconnect Switch, Switch Disconnector, 3 Pole Switch
Technical Specifications
- Max Rated Operation Voltage: 690 V
- Rated Permanent Current: 63 A
- Rated Operation Power at AC 3, 400 V: 18.5 kW
- Rated Operation Power at AC 23, 400 V: 30 kW
- Rated Short Time Withstand Current: 1300 kA
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 8 kV
- Type of Control Element: Long turning handle
- Type of Electrical Connection: Screw connection
- Rated Operating Voltage: 400-690 V
- Conditioned Rated Short Circuit Current: 15 kA
- Degree of Protection: IP20
- Rated Surrounding Temperature: 60 °C
- Storage Temperature: -40-80 °C
- Dimensions (H x L x W): 200mm x 100mm x 150mm
- Weight: 2.5 kg
Key Features
- 3 Pole configuration for versatile applications.
- Rated for 63A with a maximum operation voltage of 690V.
- IP20 rated for front-side protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment control
- Commercial: Electrical distribution systems
- General: Safety disconnection in electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Complies with AS/NZS 3820 for essential safety requirements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 194E Disconnect Switch is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
Non-Returnable & Non-Cancellable
