194ECA00

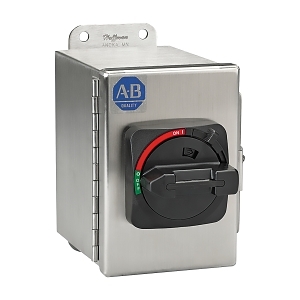

Allen-Bradley 194E Enclosed Disconnect Switch IP66 Stainless Steel, Actuator Black/Grey, 3 Pole 100A


$1,099.80 List price: $1,460.30
+

Weight: 5.000 kg

Product Name/Title: Allen-Bradley 194E Enclosed Disconnect Switch IP66 Stainless Steel, Actuator Black/Grey, 3 Pole 100A

Brand: NHP

SKU: 194ECA00

Alternatively Known As: Disconnect Switch, Enclosed Switch Disconnector, Safety Switch

Technical Specifications
  • Max Rated Operation Voltage: 600 V
  • Rated Permanent Current: 100 A
  • Number of Poles: 3
  • Frequency: 50/60 Hz
  • Rated Operation Power at AC 3 400 V: 37 kW
  • Rated Operation Power at AC 23 400 V: 55 kW
  • Rated Short Time Withstand Current: 2500 kA
  • Rated Insulation Voltage: 690 V
  • Rated Impulse Withstand Voltage: 8 kV
  • Type of Control Element: Door coupling rotary drive
  • Type of Electrical Connection: Screw connection
  • Conditioned Rated Short Circuit Current: 25 kA
  • Device Construction: Complete device in housing
  • Degree of Protection: IP66, NEMA 4X
  • Dimensions (H x L x W): 241mm x 200mm x 176mm
  • Weight: 5.0 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • 3 pole design with a rated current of 100A.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Manufacturing facilities, machinery control
  • Commercial: Electrical distribution systems
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Complies with AS/NZS 3820 for essential safety requirements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 194E Enclosed Disconnect Switch is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable
