194ECA20

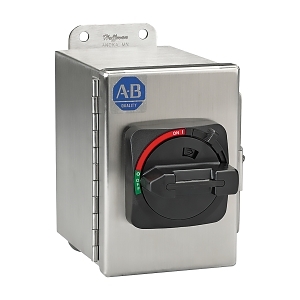

Allen-Bradley 194E Enclosed Disconnect Switch IP66 Stainless Steel, Actuator Black/Grey, 3 Pole 25A


$1,349.30 List price: $1,791.70
+

Weight: 2.500 kg

Product Name/Title: Allen-Bradley 194E Enclosed Disconnect Switch IP66 Stainless Steel, Actuator Black/Grey, 3 Pole 25A

Brand: NHP

SKU: 194ECA20

Alternatively Known As: Disconnect Switch, Safety Switch, Enclosed Switch Disconnector

Technical Specifications
  • Max Rated Operation Voltage: 600 V
  • Rated Permanent Current: 25 A
  • Number of Poles: 3
  • Frequency: 50/60 Hz
  • Rated Operation Power at AC 3 400 V: 7.5 kW
  • Rated Operation Power at AC 23 400 V: 11 kW
  • Rated Short Time Withstand Current: 900 kA
  • Rated Insulation Voltage: 690 V
  • Rated Impulse Withstand Voltage: 8 kV
  • Type of Control Element: Door coupling rotary drive
  • Type of Electrical Connection: Screw connection
  • Conditioned Rated Short Circuit Current: 20 kA
  • Device Construction: Complete device in housing
  • Colour Control Element: Black
  • Degree of Protection: IP66
  • NEMA Rating: 4X
  • Version as Main Switch: Yes
  • Version as Maintenance Service Switch: Yes
  • Version as Emergency Stop Installation: Yes
  • Dimensions (H x L x W): 191mm x 187mm x 126mm
  • Weight: 2.5 kg
Key Features
  • IP66 rated for protection against dust and water ingress.
  • 3 poles with a rated current of 25A.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Manufacturing facilities, machinery control
  • Commercial: Electrical distribution systems, safety applications
Standards & Compliance
  • Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
  • Durable stainless steel construction enhances longevity and reduces waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 194E Enclosed Disconnect Switch IP66 Stainless Steel is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable electrical disconnection.

Non-Returnable & Non-Cancellable
