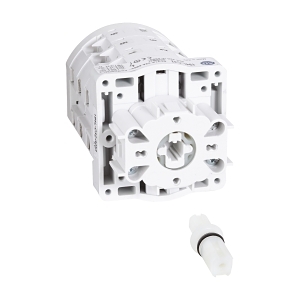

Product Name/Title: Allen-Bradley 194L Cam Switch 4Pole 16A Panel Mount 90 Degree Off On
Brand: NHP
SKU: 194LE161754
Alternatively Known As: 4 Pole Cam Switch, 16A Cam Switch, Panel Mount Switch
Technical Specifications
- Rated Permanent Current: 16 A
- Rated Operation Power at AC 3 400 V: 5.5 kW
- Rated Operation Current at AC 15 230 V: 6 A
- Rated Operation Current at AC 15 400 V: 4 A
- Rated Operation Current at AC 22A 690 V: 16 A
- Rated Operation Current at AC 22A 220-500 V: 16 A
- Rated Operation Current at AC 21A 690 V: 16 A
- Rated Operation Current at AC 1 690 V: 16 A
- Thermal Current Enclosed: 16 A
- Thermal Current Open: 20 A
- Type of Electrical Connection: Screw connection
- Mounting Method: Front mounting
- Material Housing: Plastic
- Wire Conductor Size (Rigid Cable): 1-2.5 mm²
- Wire Conductor Size (Flex Cable): 1-2.5 mm²
- Degree of Protection: IP20
- Number of Switch Positions: 2
- Operating Temperature: -25-60 °C
- Dimensions (H x L x W): 42mm x 54mm x 42mm
- Weight: 0.5 kg
Key Features
- 4 poles for versatile switching options.
- Rated for 16A with a robust mechanical life of 1,000,000 cycles.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery, and equipment
- Commercial: Electrical installations requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 194L Cam Switch 4Pole 16A Panel Mount is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
