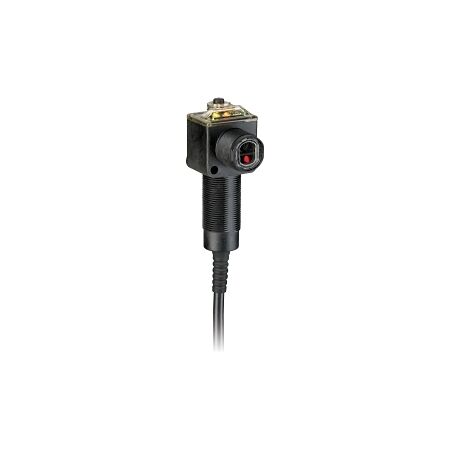

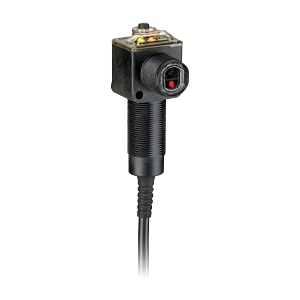

Product Name/Title: Allen-Bradley 42EF Photoelectric Sensor Diffuse 24-240V AC DC Range 3-500mm PMOS AC MICRO 4
Brand: NHP
SKU: 42EFD1SFAKA2
Alternatively Known As: Diffuse Photoelectric Sensor, Infrared Photo Sensor, Industrial Photo Sensor
Technical Specifications
- Voltage Type: AC/DC
- Max Output Current: 0.1 mA
- Response Time: 1 ms
- Type of Electric Connection: Connector M12
- Number of Conductors: 4
- Material of Optical Surface: Plastic
- Material Housing: Other
- Construction Type Housing: Special construction
- Degree of Protection IP: IP67
- Sensing Type: Standard diffuse
- Type of Light: Infrared light
- Type of Optical Signal: Continuous light
- Wavelength of the Sensor: 880 nm
- Beam Angle Field of View: 5 °
- Max Switching Distance: 300 mm
- Thread Size: 18 mm
- Ambient Temperature: -25-50 °C
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- Standard diffuse sensing type with a maximum switching distance of 300 mm.
- Infrared light with a wavelength of 880 nm for reliable detection.
- IP67 rated for protection against dust and water ingress.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation and control systems
- Material handling and packaging
- Safety and security systems
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 42EF Photoelectric Sensor is available now for immediate purchase. Ideal for industrial automation and control applications.
Non-Returnable & Non-Cancellable
