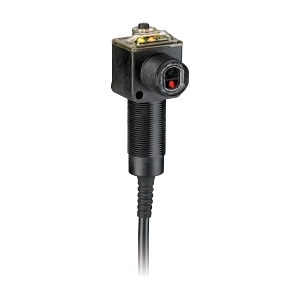

Allen-Bradley 42EF Photoelectric Sensor Transmitted Beam Receiver 24-240V AC DC 20m NMOS AC Micro 4


$215.00 List price: $285.50
+

Weight: 0.500 kg

Product Name/Title: Allen-Bradley 42EF Photoelectric Sensor Transmitted Beam Receiver 24-240V AC DC 20m NMOS AC Micro 4

Brand: NHP

SKU: 42EFR9SCBG4

Alternatively Known As: Photoelectric Beam Sensor, Infrared Light Sensor, Through Beam Sensor

Technical Specifications
  • Voltage Type: AC/DC
  • Max Output Current: 100 mA
  • Response Time: 1 ms
  • Type of Electric Connection: Connector M12
  • Number of Conductors: 4
  • Material of Optical Surface: Plastic
  • Construction Type Housing: Cuboid
  • Degree of Protection IP: IP67
  • Degree of Protection NEMA: 6P
  • AWG Number: 22
  • Sensing Type: Transmitted beam receiver
  • Type of Light: Infrared light
  • Illumination Mode: Continuous light
  • Wavelength of the Sensor: 880 nm
  • Beam Angle Field of View: 7°
  • Max Switching Distance: 20000 mm
  • Ambient Temperature: -25-70 °C
  • Dimensions (H x L x W): 69mm x 34.5mm x 27mm
  • Weight: 0.5 kg
Key Features
  • Transmitted beam receiver with a maximum switching distance of 20m.
  • IP67 rated for protection against dust and water.
  • Manual adjustment for easy setup.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial automation and control systems
  • Safety applications in manufacturing environments
  • Object detection and counting in various settings
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 42EF Photoelectric Sensor is available now for immediate purchase. Ideal for industrial automation and safety applications.

Non-Returnable & Non-Cancellable
