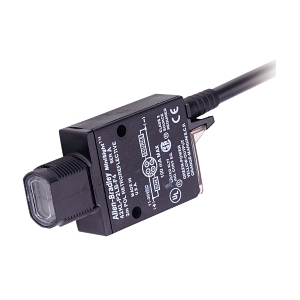

Product Name/Title: Allen-Bradley 42KL Photoelectric Sensor Diffuse Wide 10 8-30V DC Range 1-180mm PNP/NPN DC Micro 4
Brand: NHP
SKU: 42KLW1LBF4
Alternatively Known As: Diffuse Photoelectric Sensor, Infrared Photo Sensor, 42KL Sensor
- Voltage Type: 8-30V DC
- Max Output Current: 0.1 mA
- Response Time: 1 ms
- Electric Connection: Connector M12
- Number of Conductors: 4
- Material of Optical Surface: Plastic
- Material Housing: Plastic
- Construction Type Housing: Special construction
- Degree of Protection: IP67
- Sensing Type: Standard diffuse
- Type of Light: Infrared light
- Type of Optical Signal: Continuous light
- Wavelength of the Sensor: 880 nm
- Beam Angle Field of View: 18 °
- Max Switching Distance: 180 mm
- Thread Size: 18 mm
- Ambient Temperature: -20-70 °C
- Dimensions (H x L x W): 50mm x 50mm x 18mm
- Weight: 0.2 kg
- Standard diffuse sensing type with a maximum switching distance of 180 mm.
- IP67 rated for protection against dust and water.
- Professional installation by a qualified technician is recommended for optimal performance.
- Industrial automation and control systems
- Packaging and material handling
- Safety and security systems
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
- Durable design reduces the need for frequent replacements, minimizing waste.
1 year warranty against manufacturing defects.
The Allen-Bradley 42KL Photoelectric Sensor is available now for immediate purchase, ideal for industrial automation applications.
