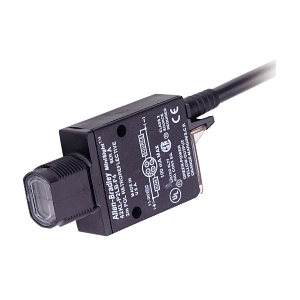

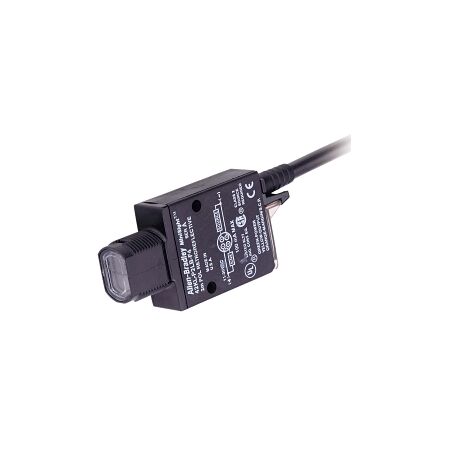

Allen-Bradley 42KL Photoelectric Sensor Fixed Focus Diffuse 11-30V DC PNP and NPN DC Micro 4


$168.10 List price: $223.20
+

Weight: 0.200 kg

Product Name/Title: Allen-Bradley 42KL Photoelectric Sensor Fixed Focus Diffuse 11-30V DC PNP and NPN DC Micro 4

Brand: NHP

SKU: 42KLE1EZBF4

Alternatively Known As: 42KL Photo Sensor, Photoelectric Sensor, Infrared Photo Sensor

Technical Specifications
  • Voltage Type: DC
  • Rated Control Supply Voltage: 10.8-30 V
  • Response Time: 15 ms
  • Electric Connection: Connector M12
  • Number of Conductors: 4
  • Material of Optical Surface: Plastic
  • Material Housing: Plastic
  • Construction Type Housing: Cuboid
  • Degree of Protection IP: IP67
  • Degree of Protection NEMA: 6P
  • Sensing Type: Transmitted beam emitter
  • Type of Light: Infrared light
  • Illumination Mode: Continuous light
  • Wavelength of the Sensor: 880 nm
  • Beam Angle Field of View: 7 °
  • Sensing Mode: Light-/dark switching
  • Scope of Delivery: Transmitter
  • Ambient Temperature: -20-70 °C
  • Dimensions (H x L x W): 30.7mm x 62.6mm x 12.7mm
  • Weight: 0.2 kg
Key Features
  • Manual adjustment for precise settings.
  • IP67 rated for protection against dust and water.
  • Infrared light sensing with a maximum switching distance of 30,000 mm.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial automation
  • Conveyor systems
  • Packaging machinery
Standards & Compliance
  • Complies with relevant safety and performance standards.
Environmental Benefits
  • Durable design reduces the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 42KL Photoelectric Sensor is available now for immediate purchase. Ideal for industrial automation and sensing applications.

Non-Returnable & Non-Cancellable
