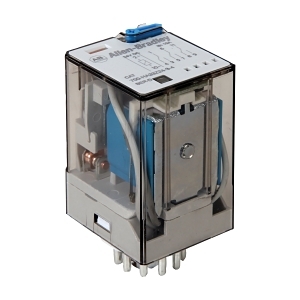

Product Name/Title: Allen-Bradley 700-HA Tube Base Relay 10A 3CO 3PDT 24VAC Coil with Push To Test and Pilotlight
Brand: NHP
SKU: 700HA33A2434
Alternatively Known As: General Purpose Relay, Tube Base Relay, 700-HA Relay
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage AC: 250 V
- Rated Switching Power at AC-1: 2500 VA
- Rated Switching Power at AC-15 (230 V): 500 VA
- Breaking Capacity at DC-1 (30 V): 10 A
- Control Supply Voltage (50/60 Hz): 24 V
- Degree of Protection: IP40
- Material Contact: Silver nickel
- Mechanical Life: 20,000,000 cycles
- Max Shock Acceleration: 50 g
- Max Vibration Acceleration: 5 m/s²
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 36.5mm x 54.1mm x 32.8mm
- Weight: 0.2 kg
Key Features
- 10A nominal current with 3 changeover contacts.
- LED indication for operational status.
- Plug-in connection for easy installation.
- Latching test button for manual testing.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for long electrical life with 100,000 service cycles.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HA Tube Base Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
