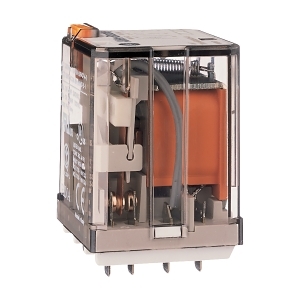

Product Name/Title: Allen-Bradley 700-HB General Purpose Blade Base Relay 15A 2 Changeover DPDT 110V DC Coil
Brand: NHP
SKU: 700HB32Z1
Alternatively Known As: General Purpose Relay, DPDT Relay, Blade Base Relay
Technical Specifications
- Nominal Current: 15 A
- Nominal Voltage AC: 250 V
- Rated Switching Power at AC 1: 3750 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Breaking Capacity at DC 1 30 V: 15 A
- Electrical Life at Un in Service Cycles: 100000 cycles
- Material Contact: Silver cadmium-oxide
- Degree of Protection: IP40
- Operating Temperature: -40-70 °C
- Dimensions (H x L x W): 36mm x 51mm x 38mm
- Weight: 0.5 kg
Key Features
- 15A nominal current with 2 changeover contacts.
- Plug-in connection for easy installation.
- Rated for 110V DC coil voltage.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HB General Purpose Blade Base Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
