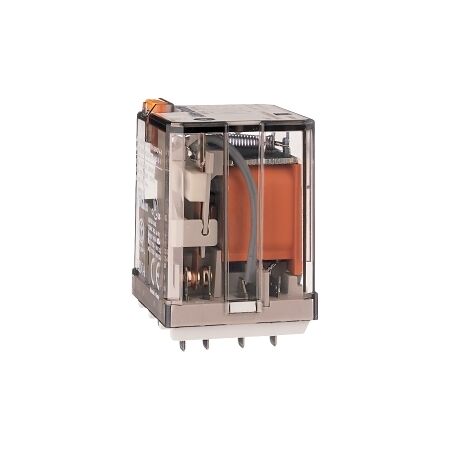

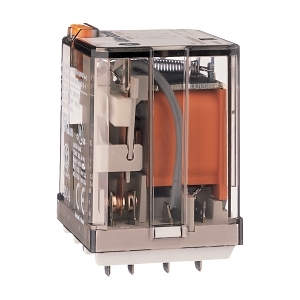

Product Name/Title: Allen-Bradley 700-HB General Purpose Blade Base Relay 15A 2 Changeover DPDT 240V AC Coil
Brand: NHP
SKU: 700HB32A2
Alternatively Known As: General Purpose Relay, DPDT Relay, Blade Base Relay
Technical Specifications
- Nominal Current: 15 A
- Nominal Voltage AC: 250 V
- Rated Switching Power at AC-1: 3750 VA
- Rated Switching Power at AC-15 (230 V): 750 VA
- Breaking Capacity at DC-1 (30 V): 15 A
- Control Supply Voltage (AC 50/60 Hz): 240 V
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Material Contact: Silver cadmium-oxide
- Operating Temperature: -40 to 70 °C
- Dimensions (H x L x W): 36mm x 51mm x 38mm
- Weight: 0.2 kg
Key Features
- 15A nominal current with 2 changeover contacts.
- Plug-in connection for easy installation.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HB General Purpose Blade Base Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
