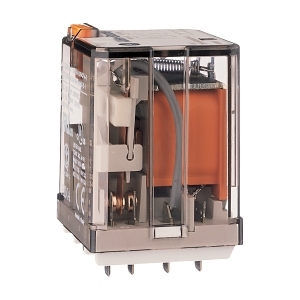

Product Name/Title: Allen-Bradley 700-HB General Purpose Blade Base Relay 15A DPDT 24V DC Coil Blade Connection
Brand: NHP
SKU: 700HB32Z24
Alternatively Known As: General Purpose Relay, Blade Base Relay, DPDT Relay
Technical Specifications
- Nominal Current: 15 A
- Nominal Voltage AC: 250 V
- Rated Switching Power at AC 1: 3750 VA
- Rated Switching Power at AC 15 230 V: 750 VA
- Breaking Capacity at DC 1 30 V: 15 A
- Voltage Type for Actuating: DC
- Control Supply Voltage US at DC: 24 V
- Electrical Life at Un in Service Cycles: 100000 cycles
- Material Contact: Silver cadmium-oxide
- Degree of Protection: IP40
- Max Shock Acceleration: 50 g
- Max Vibration Acceleration: 5 m/s²
- Operating Temperature: -40-70 °C
- Dimensions (H x L x W): 35.8mm x 51.4mm x 38.2mm
- Weight: 0.2 kg
Key Features
- 15A nominal current with DPDT configuration.
- 24V DC coil for reliable operation.
- Plug-in connection for easy installation.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, machinery control
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for durability and long operational life.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HB General Purpose Blade Base Relay is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
