700HC24A1

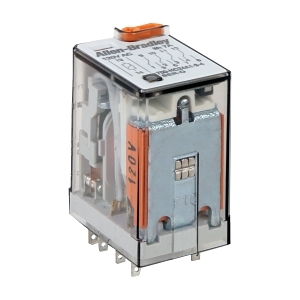

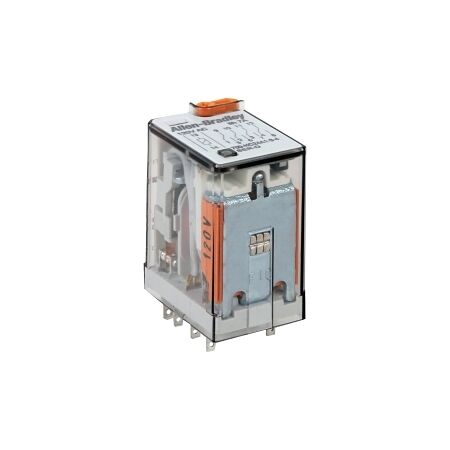

Allen-Bradley 700-HC Plug In Relay 7A 4CO 120VAC Coil Silver Contacts Low Energy Rating 10V 10mA

$33.00 List price: $43.90
+ −
30 Days Return Delivery Options
Weight: 0.100 kg

Product Name/Title: Allen-Bradley 700-HC Plug In Relay 7A 4CO 120VAC Coil Silver Contacts Low Energy Rating 10V 10mA

Brand: NHP

SKU: 700HC24A1

Alternatively Known As: 700-HC Relay, Plug In Relay, 7A Relay, 4CO Relay

Technical Specifications
  • Nominal Current: 7 A
  • Nominal Voltage AC: 250 V
  • Max Rated Operation Voltage: 277 V
  • Rated Switching Power at AC-1: 1750 VA
  • Rated Switching Power at AC-15 (230 V): 350 VA
  • Breaking Capacity at DC-1 (30 V): 7 A
  • Control Supply Voltage (AC 50/60 Hz): 120 V
  • Electrical Life: 100,000 cycles
  • Mechanical Life: 20,000,000 cycles
  • Material Contact: Silver nickel
  • Degree of Protection: IP20
  • Operating Temperature: -30 to 55 °C
  • Dimensions (H x L x W): 28mm x 37mm x 21mm
  • Weight: 0.1 kg
Key Features
  • General purpose relay with 4 changeover contacts.
  • Plug-in connection for easy installation.
  • Rated for 7A at 120VAC coil voltage.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Automation systems, control panels
  • Commercial: HVAC systems, lighting control
  • General: Any application requiring reliable switching
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Low energy rating reduces overall power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 700-HC Plug In Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.

Non-Returnable & Non-Cancellable
