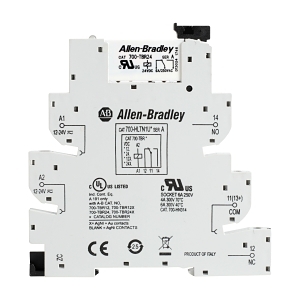

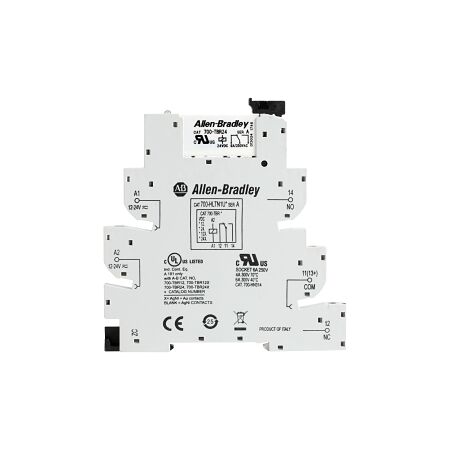

Product Name/Title: Allen-Bradley 700-HL Interface Relay 6A 1CO 120VAC and 125 VDC with Silver Contacts
Brand: NHP
SKU: 700HLT1L1
Alternatively Known As: Relay, Switching Relay, Interface Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Number of Contacts: 1 CO
- Rated Switching Power at AC-1: 1500 VA
- Rated Switching Power at AC-15 (230 V): 300 VA
- Breaking Capacity at DC-1 (30 V): 6 A
- Voltage Type for Actuating: AC/DC
- Control Supply Voltage (AC 50 Hz): 120 V
- Rated Control Supply Voltage (AC 50 Hz): 110-125 V
- Control Supply Voltage (DC): 125 V
- Rated Control Supply Voltage (DC): 110-125 V
- Electrical Life at Un in Service: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Degree of Protection: IP20
- Operating Temperature: -40 to 55 °C
- Material Contact: Silver tin-oxide
- Dimensions (H x L x W): 88mm x 76mm x 62mm
- Weight: 0.5 kg
Key Features
- Interface relay with 6A nominal current and 1 change-over contact.
- LED indication for operational status.
- Suitable for plug-in socket mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Durable design ensures long operational life, reducing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HL Interface Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
Non-Returnable & Non-Cancellable
