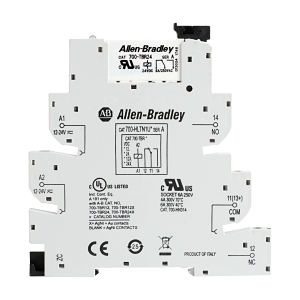

Product Name/Title: Allen-Bradley 700-HL Interface Relay 6A 1CO SPDT 220V to 240VAC DC Standard Silver Contacts
Brand: NHP
SKU: 700HLT1U2
Alternatively Known As: Interface Relay, Switching Relay, 700-HL Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Rated Switching Power at AC-1: 1500 VA
- Rated Switching Power at AC-15 (230 V): 300 VA
- Breaking Capacity at DC-1 (30 V): 6 A
- Voltage Type for Actuating: AC/DC
- Control Supply Voltage (US) at AC 50 Hz: 240 V
- Degree of Protection: IP20
- Electrical Life at Un in Service: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Material Contact: Silver tin-oxide
- Operating Temperature: -40 to 55 °C
- Dimensions (H x L x W): 88mm x 76mm x 62mm
- Weight: 0.5 kg
Key Features
- 6A nominal current with 1 change-over contact.
- LED indication for operational status.
- Suitable for plug-in socket mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient design reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HL Interface Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable switching.
