800HCFRXT6A1

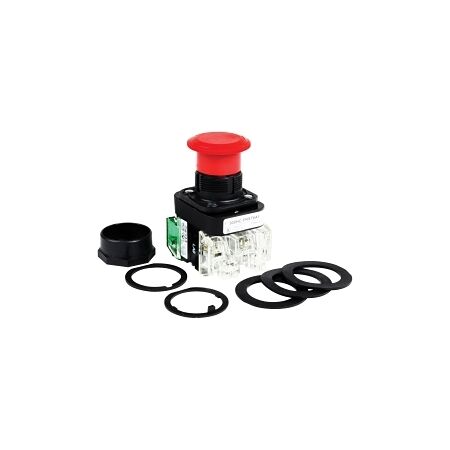

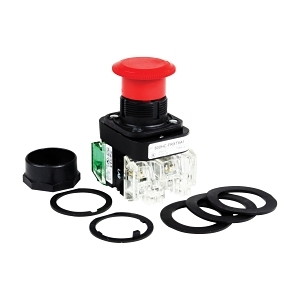

Allen-Bradley 800H Pushbutton 30.5mm COMP PLT FS STD MR HD PPTTR 1NO 1NCLB Red


$313.30 List price: $416.00
+

Weight: 0.300 kg

Product Name/Title: Allen-Bradley 800H Pushbutton 30.5mm COMP PLT FS STD MR HD PPTTR 1NO 1NCLB Red

Brand: NHP

SKU: 800HCFRXT6A1

Alternatively Known As: Mushroom Pushbutton, Emergency Stop Button, Control Pushbutton

Technical Specifications
  • Number of contacts: 1 NO, 1 NC
  • Type of electric connection: Screw connection
  • Material front ring: Plastic
  • Degree of protection: IP65/IP66
  • Number of command positions: 2
  • Max shock acceleration: 100 g
  • Max vibration acceleration: 10 m/s²
  • Max vibration frequency operational: 2000 Hz
  • Hole diameter: 30.5 mm
  • Operator diameter: 41.3 mm
  • Dimensions (H x L x W): 30.5mm x 41.3mm x 41.3mm
  • Weight: 0.3 kg
Key Features
  • 30.5mm mushroom pushbutton design for easy operation.
  • IP65/IP66 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control panels, machinery operation
  • Commercial: Emergency stop applications, safety systems
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 800H Pushbutton 30.5mm Red is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable control.
