1931EFCB

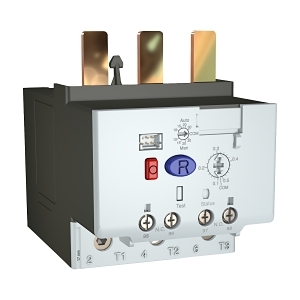

Allen-Bradley E100 Overload Electronic Advanced 1.0 to 5.0A for 100C 9 and 23A


$243.20 List price: $323.00
+

Weight: 0.500 kg

Product Name/Title: Allen-Bradley E100 Overload Electronic Advanced 1.0 to 5.0A for 100C 9 and 23A

Brand: NHP

SKU: 1931EFCB

Alternatively Known As: Electronic Overload Relay, Motor Overload Relay

Technical Specifications
  • Adjustable current range: 1-5 A
  • Release class: Adjustable
  • Max rated operation voltage: 690 V
  • Number of auxiliary contacts: 1 NC, 1 NO
  • Voltage type for actuating: Self powered
  • Reset function: Automatic and push button
  • Type of electrical connection: Screw connection
  • Mounting method: Direct attachment
  • Dimensions (H x L x W): 86.6mm x 84.7mm x 44.8mm
  • Weight: 0.5 kg
Key Features
  • Adjustable current range from 1 to 5 A.
  • Self-powered operation with automatic and push-button reset functions.
  • Includes one normally closed and one normally open auxiliary contact.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection in various machinery
  • Commercial: Equipment requiring overload protection
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Energy-efficient design reduces power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley E100 Overload Electronic Advanced Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
