1931EFEB

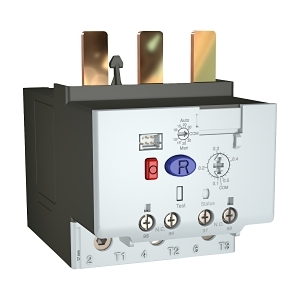

Allen-Bradley E100 Overload Electronic Advanced 5.4 to 27A for 100C 9 and 23A


$243.20 List price: $323.00
+

Weight: 1.000 kg

Product Name/Title: Allen-Bradley E100 Overload Electronic Advanced 5.4 to 27A for 100C 9 and 23A

Brand: NHP

SKU: 1931EFEB

Alternatively Known As: E100 Overload Relay, Electronic Overload Relay, Motor Protection Relay

Technical Specifications
  • Adjustable Current Range: 5.4-27 A
  • Release Class: Adjustable
  • Max Rated Operation Voltage: 690 V
  • Number of Auxiliary Contacts: 1 NC, 1 NO
  • Voltage Type for Actuating: Self powered
  • Reset Function: Automatic and Push Button
  • Type of Electrical Connection: Screw connection
  • Mounting Method: Direct attachment
  • Dimensions (H x L x W): 86.6mm x 84.7mm x 44.8mm
  • Weight: 1.0 kg
Key Features
  • Adjustable current range from 5.4 to 27 A.
  • Self-powered operation with automatic and push-button reset functions.
  • Includes one normally closed and one normally open auxiliary contact.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection in various machinery
  • Commercial: Equipment requiring overload protection
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Energy-efficient design contributes to reduced power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley E100 Overload Electronic Advanced Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
