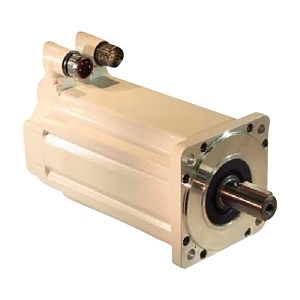

Product Name/Title: Allen-Bradley Kinetix MPF Servo Motor 230VAC 5000 RPM 3.05Nm Multi Turn Encoder 24VDC Brake Keyed
Brand: NHP
SKU: MPFA320PMJ74BA
Alternatively Known As: Kinetix MPF Servo Motor, Servo Motor 230VAC, Multi Turn Encoder Motor
Technical Specifications
- Voltage Class AC: 200 V
- Feedback Type: Multi-turn high resolution encoder
- Feedback Resolution: Sin/Cos, 1024 cycles/rev
- Feedback Protocol: HiperFace DSL Protocol/SSI Protocol
- With Brake: Yes
- Magnet Stack Length: 50.8 mm
- Magnet Stack Number of Magnets: 20
- Degree of Protection: IP66/IP67/IP69K
- Rotational Speed: 5000 1/min
- Nominal Torque: 7.91 Nm
- Torque: 3.05 Nm
- Max Shock Acceleration: 20 g
- Max Vibration Frequency Operational: 2000 Hz
- Max Vibration Acceleration: 2.5 m/s²
- Operating Temperature: 0-40 °C
- Allowable Relative Humidity: 5-95 %
- Ambient Temperature: -30-70 °C
- Dimensions (H x L x W): 50mm x 150mm x 50mm
- Weight: 0.005 kg
Key Features
- Multi-turn high resolution encoder for precise feedback.
- IP66/IP67/IP69K rated for high protection against dust and water.
- Nominal torque of 7.91 Nm and maximum torque of 3.05 Nm.
- Operating temperature range of -30 to 70 °C.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial automation and control systems
- Robotics and motion control
- CNC machinery and precision equipment
Standards & Compliance
- Complies with relevant Australian standards for electrical safety and performance.
Environmental Benefits
- Designed for high efficiency and reliability in various environmental conditions.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley Kinetix MPF Servo Motor is available now for immediate purchase. Ideal for industrial automation and control applications.
Non-Returnable & Non-Cancellable
