MPLB1520UVJ74AA

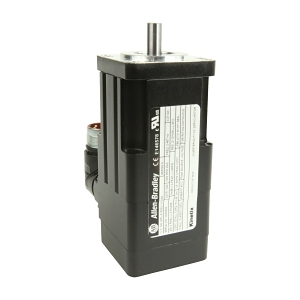

Allen-Bradley Kinetix MPL Servo Motor 460VAC 7000 RPM 0.49Nm Multi Turn Encoder 24VDC Brake Keyed


$5,633.50 List price: $7,480.50
+

Weight: 1.400 kg

Product Name/Title: Allen-Bradley Kinetix MPL Servo Motor 460VAC 7000 RPM 0.49Nm Multi Turn Encoder 24VDC Brake Keyed

Brand: NHP

SKU: MPLB1520UVJ74AA

Alternatively Known As: MPL Servo Motor, Kinetix Servo Motor, Allen-Bradley Servo Motor

Technical Specifications
  • Voltage Class AC: 400 V
  • Feedback Type: Multi-turn high resolution encoder
  • Feedback Protocol: HiperFace DSL Protocol/SSI Protocol
  • With Brake: Yes
  • Magnet Stack Length: 50.8 mm
  • Magnet Stack Number of Magnets: 20
  • Degree of Protection: IP50
  • Rotational Speed: 7000 1/min
  • Nominal Torque: 1.58 Nm
  • Torque: 0.49 Nm
  • Max Shock Acceleration: 20 g
  • Max Vibration Frequency Operational: 2000 Hz
  • Max Vibration Acceleration: 2.5 m/s²
  • Operating Temperature: 0-40 °C
  • Allowable Relative Humidity: 5-95 %
  • Ambient Temperature: -30-70 °C
  • Dimensions (H x L x W): 100mm x 200mm x 100mm
  • Weight: 1.4 kg
Key Features
  • Multi-turn high resolution encoder for precise feedback.
  • IP50 rated for protection against dust and moisture.
  • Integrated brake for enhanced safety and control.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial automation and robotics
  • CNC machinery
  • Conveyor systems
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Efficient energy use contributes to lower operational costs.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley Kinetix MPL Servo Motor is available now for immediate purchase. Ideal for industrial automation and robotics applications.

Non-Returnable & Non-Cancellable
