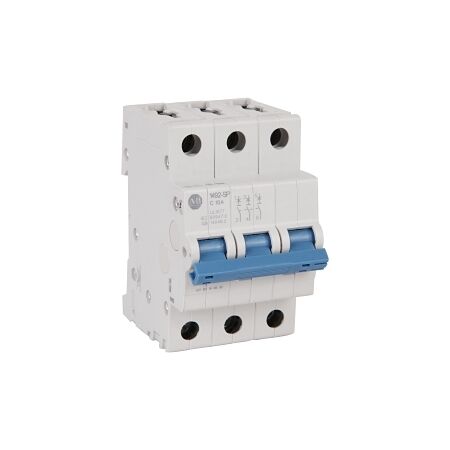

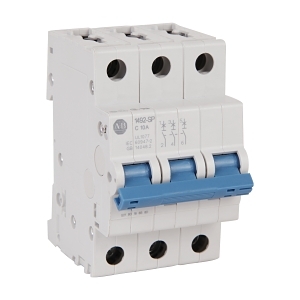

Product Name/Title: Allen-Bradley Miniature Circuit Breaker UL1077 10kA 3Pole 3A B Curve
Brand: NHP
SKU: 1492SPM3B030
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 3 A
- Number of Poles: 3
- Trip Curve: B
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 15 kA at 400 VAC
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Rated Impulse Withstand Voltage: 4 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -25 to 55 °C
- Dimensions (H x L x W): 80mm x 67mm x 52.5mm
- Weight: 0.34 kg
Key Features
- 10kA breaking capacity for reliable circuit protection.
- B Curve trip characteristic suitable for general applications.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Protection of electrical circuits in commercial and industrial applications
- Residential: Circuit protection in home electrical systems
Standards & Compliance
- Complies with AS/NZS 60947.2 for circuit breakers.
Environmental Benefits
- Enhances safety by preventing electrical overloads and short circuits.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley Miniature Circuit Breaker UL1077 10kA 3Pole 3A B Curve is available now for immediate purchase. Ideal for industrial and residential circuit protection.
Non-Returnable & Non-Cancellable
