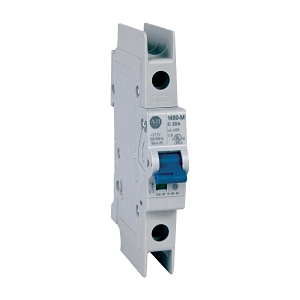

Product Name/Title: Allen-Bradley Miniature Circuit Breaker UL489 10kA 1Pole 2A D Curve
Brand: NHP
SKU: 1489M1D020
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 2 A
- Number of Poles: 1
- Trip Curve: D
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Service Voltage: 12 V
- Rated Short Circuit Breaking Capacity: 15 kA
- Max Rated Operation Voltage: 253 V
- Rated Impulse Withstand Voltage: 4 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature: -25 to 55 °C
- Dimensions (H x L x W): 111mm x 74mm x 17.5mm
- Weight: 0.13 kg
Key Features
- 10kA breaking capacity for reliable circuit protection.
- D curve trip characteristic suitable for inductive loads.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small electrical installations
- Commercial: Offices and retail spaces requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947.2 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley Miniature Circuit Breaker UL489 10kA 1Pole 2A D Curve is available now for immediate purchase. Ideal for residential and commercial electrical installations.
Non-Returnable & Non-Cancellable
