ATS22D47Q

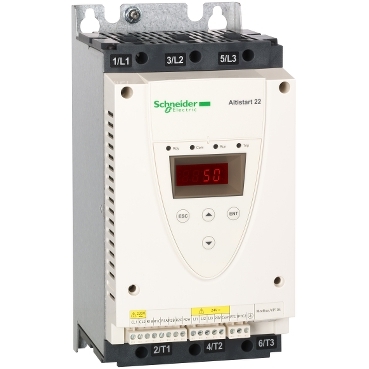

Altistart 22, Soft starter, ATS22 control 220V power 230V(11kW)/400...440V(22kW)


$1,943.70 List price: $2,915.60
+

Weight: 7.000 kg

Product Name/Title: Altistart 22, Soft starter, ATS22 control 220V power 230V(11kW)/400...440V(22kW)

Brand: Clipsal

SKU: ATS22D47Q

Alternatively Known As: Soft starter, Motor starter, ATS22D47Q

Technical Specifications
  • Rated supply voltage: 230...440 V
  • Motor power: 11 kW at 230 V, 22 kW at 400/440 V
  • Power dissipation: 48 W
  • Utilisation category: AC-53A
  • Control circuit voltage: 230 V
  • Cooling type: Forced convection
  • Operating temperature: -10...40 °C
  • Vibration resistance: 1 gn
  • Noise level: 45 dB
  • Dimensions (H x L x W): 265mm x 169mm x 130mm
  • Weight: 7 kg
Key Features
  • Internal bypass function
  • Modbus communication port
  • Adjustable output current from 0.4 to 1 Icl
  • IP20 protection rating
  • Torque control starting method
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Asynchronous motors, pumps, and fans
Standards & Compliance
  • Complies with IEC 60947-4-2 for safety and performance standards.
Environmental Benefits
  • Complies with environmental regulations and standards.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Altistart 22 Soft Starter is available now for immediate purchase. Ideal for industrial applications requiring motor control.
