01MM-DG16

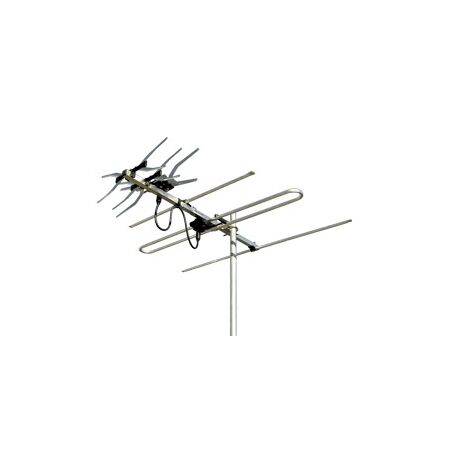

Antenna VHF/UHF (6-12)(21-69) 16 Element


$87.10
+

Weight: 15.000 kg
Application

Best suited to metropolitan & regional areas up to 30kms from transmitter.

Features
  • Capable of receiving Digital & Analogue UHF and VHF TV Terrestrial Signals
  • Improved Gain, VSWR & F/B Ratio for superior Carrier to Noise ratio
  • X type elements for wider bandwidth & higher gain
  • Digital anti-reflection Matching System (DMS) achieved by diplexing the UHF and VHF antennas together, giving 20dB isolation for sharper analogue pictures and better Bit Error Ratio (BER) for digital reception
  • ‘F’ Type PCB Balun for quick installation and improved VSWR
  • High visual impact packaging



Specification:

Elements 16
Band B3, B4, B5
Channels VHF (6-12)
UHF (21-69)
Max. Gain VHF 4.5dB
UHF 6dB
AV VSWR VHF 2.4:1
UHF 2.9:1
F/B Ratio VHF 10dB
UHF 12dB
Balun Type 'F' Type Balun VHF
'F' Type Diplexer
Circuit Board
Boom Length 741mm
Packing Type/Unit Inner 1
Outer: 5
Inner Carton Size 910 x 170 x 100mm
Weight 1.5kg
