01MM-LP03FHV

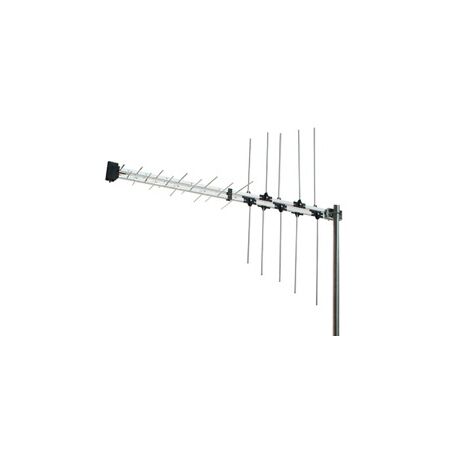

Antenna VHF/UHF (6-12)(28-69) ‘F’ Log Periodic Horizontal/Vertical


$65.00
+

Weight: 15.000 kg
Application

Horizontal/vertical mounting suitable for ACT, Bundaberg, Sheparton and Taree

Features
  • No additional offset bar or mounting required for 01MM-LP03FHV only
  • Black UV resistant plastic for durability
  • Includes - Weatherproof boot seal and 2 x twist on male RG6 connectors (plus an additional clamp for vertical mounting for 01MM-LP03F only)
  • Horizontal / Vertical model is ideal for ACT, Bundaberg, Sheparton and Taree
  • ‘F’ type connection eliminates potential for short circuit and improves return loss hence M flatness improved
  • Snap lock VHF elements
  • Connection point is an ‘F’ type balun design to feed from front of antenna to avoid connection cable kinks which gives improved return loss to eliminate pixilation
  • Heavy Duty 7mm foldable elements providing better band width and strength for our weather patterns



Specification:

Elements 32
Channel (6-12) (28-69)
Gain B3 8dB
B4 11dB
F/B B3 >20dB
B4 >20dB
Balun 'F' Type PCB
Packing Type/Unit Inner: 1
Outer: 5
Inner Carton Size 1210 x 985 x 90mm
Weight 2kg
