HV3004T-BLK-12V

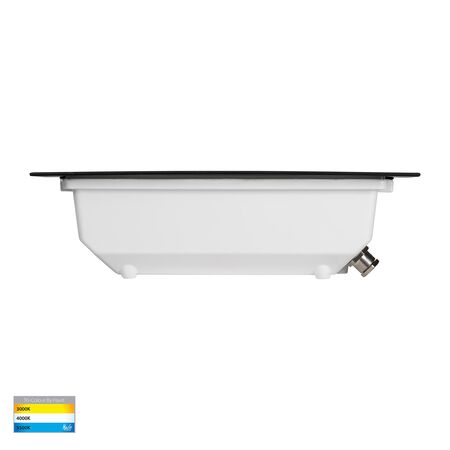

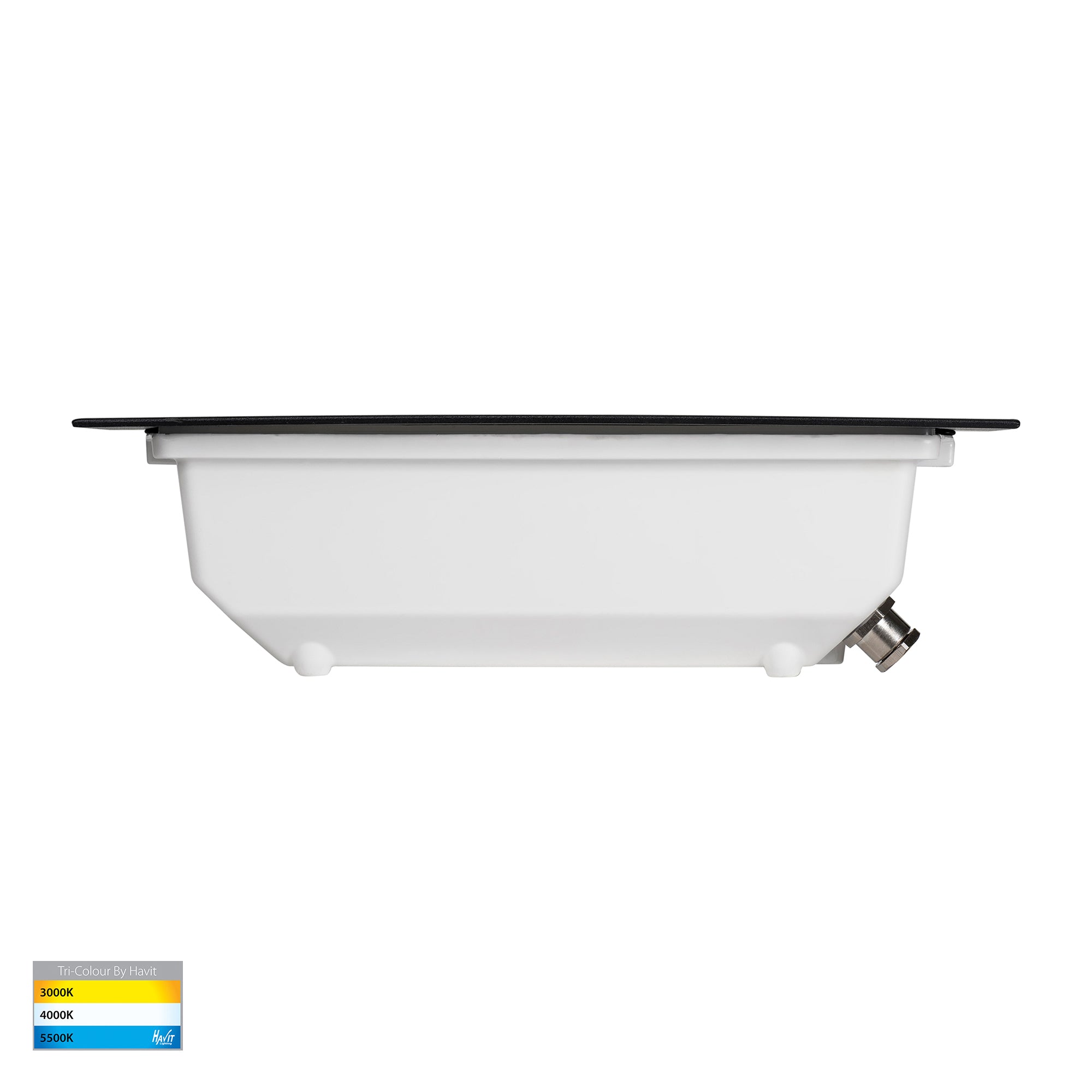

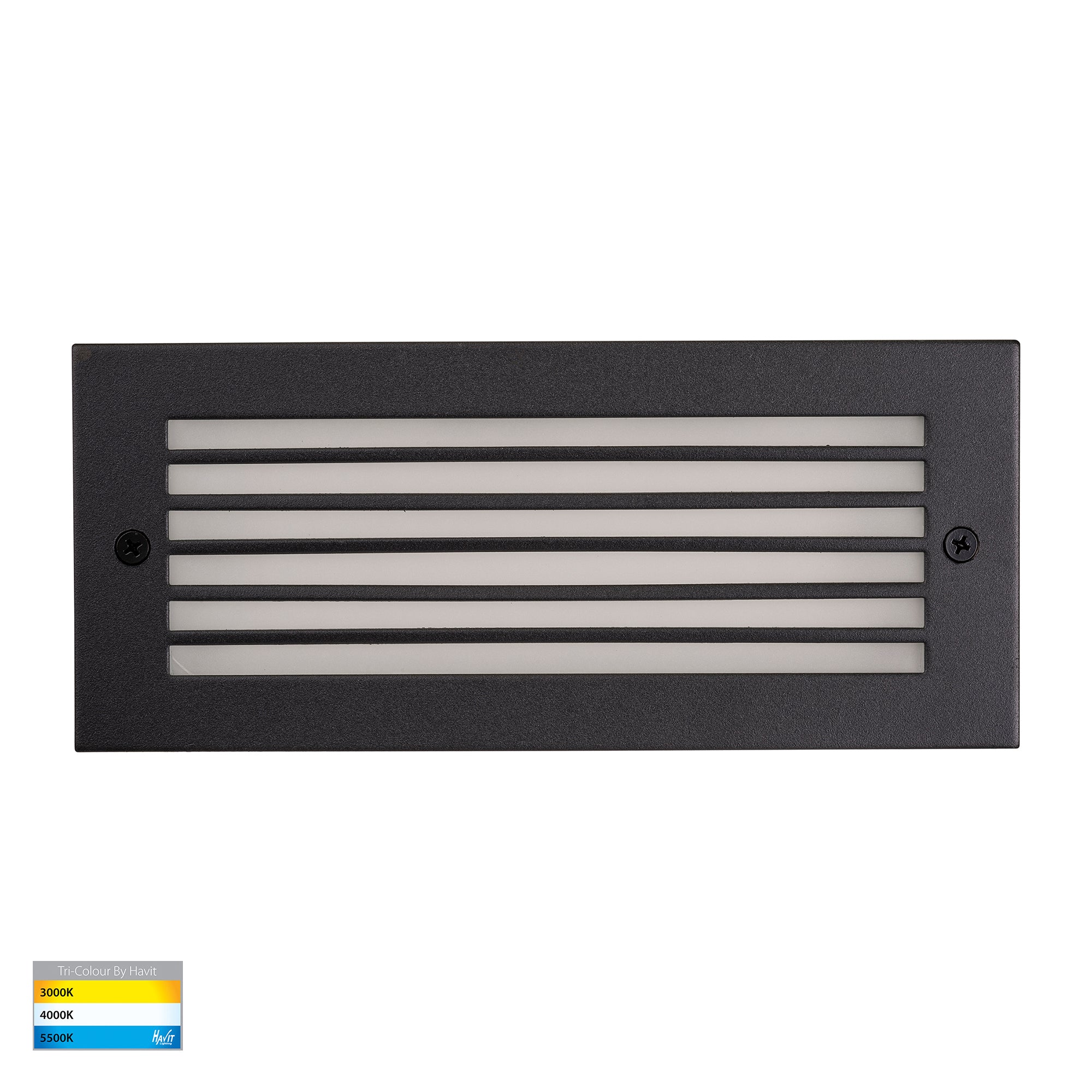

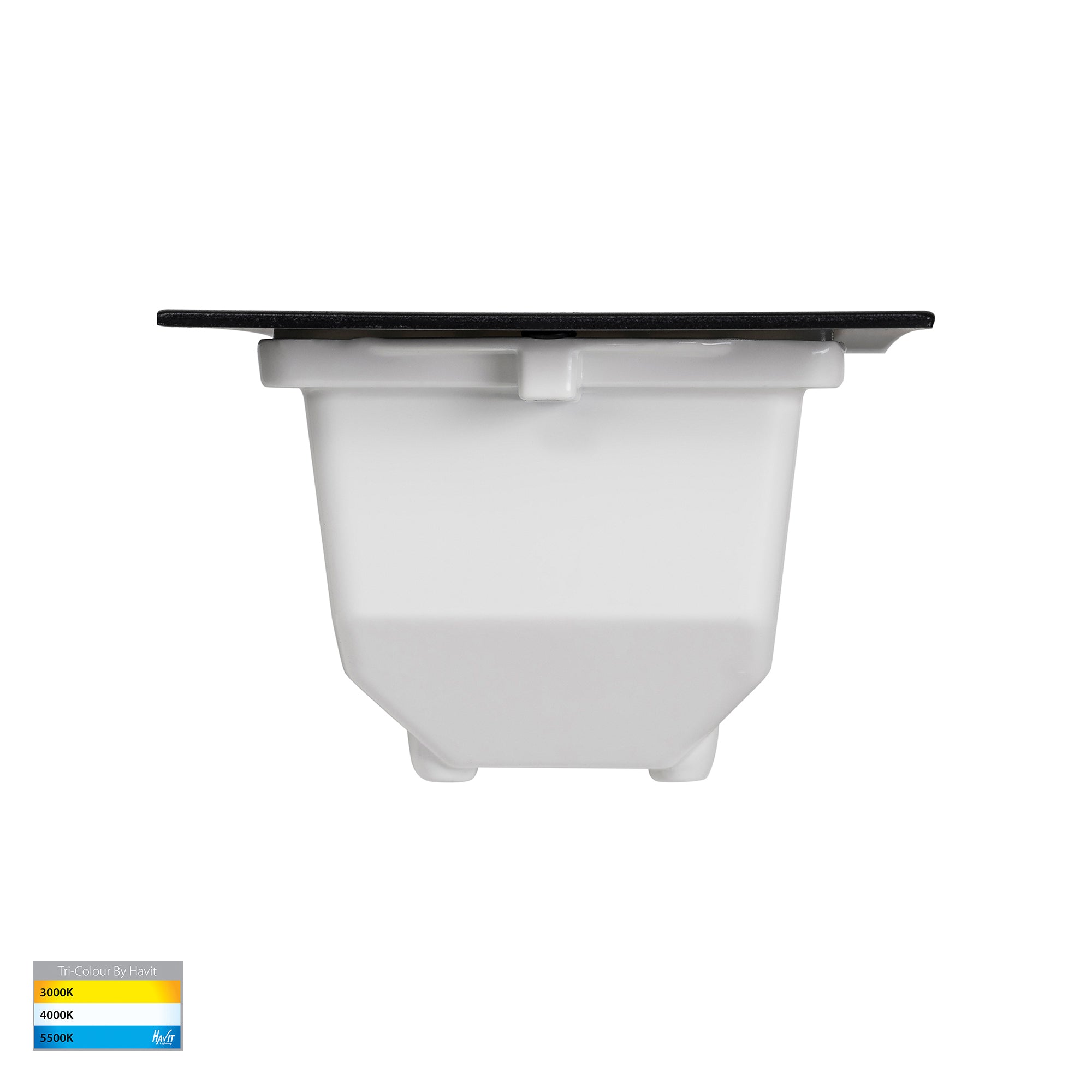

Bata Black LED Brick Light with Grill


$119.70 List price: $155.80
+

Weight: 1.000 kg

Product Name/Title: Bata Black LED Brick Light with Grill

Brand: Havit

SKU: HV3004T-BLK-12V

Alternatively Known As: Recessed Brick Light, Outdoor LED Brick Light, Dimmable Brick Light

Technical Specifications
  • Input Voltage: Available in either 240v AC or 12v DC
  • Material: Stainless steel poly powder coated black face, aluminium body, tempered glass
  • Lumens Output: 800lm (3000K), 850lm (4000K), 900lm (5500K)
  • IP Rating: IP54
  • Dimmable: Yes (240v model only)
  • Dimensions (H x L x W): 100mm x 100mm x 100mm
  • Weight: 1.0 kg
Key Features
  • Recessed design with grill face for aesthetic appeal.
  • Triac dimmable option available for 240v model.
  • Replaceable LED panels for easy maintenance.
  • Available in tri-colour options: 3000K, 4000K, 5500K.
  • IP54 rated for outdoor use.
Professional Installation Requirements
  • Professional installation is recommended, especially for the 12v model which requires a suitable 12v DC LED driver.
Applications
  • Residential: Outdoor pathways, gardens, and patios
  • Commercial: Outdoor lighting for retail spaces and public areas
Environmental Benefits
  • Energy-efficient built-in 10W LED reduces power consumption.
Warranty Information

3 years replacement warranty for items ordered after 01/01/22.

Available Now

The Bata Black LED Brick Light with Grill is available now for immediate purchase. Ideal for enhancing outdoor spaces with stylish and functional lighting.

Data Sheet (HV3004T_Data_Sheet_NOV23.pdf, 578 Kb) [Download]

Installation Instructions (HV3003_HV3004_Installation_Instructions_FEB22.pdf, 186 Kb) [Download]
