22697/06

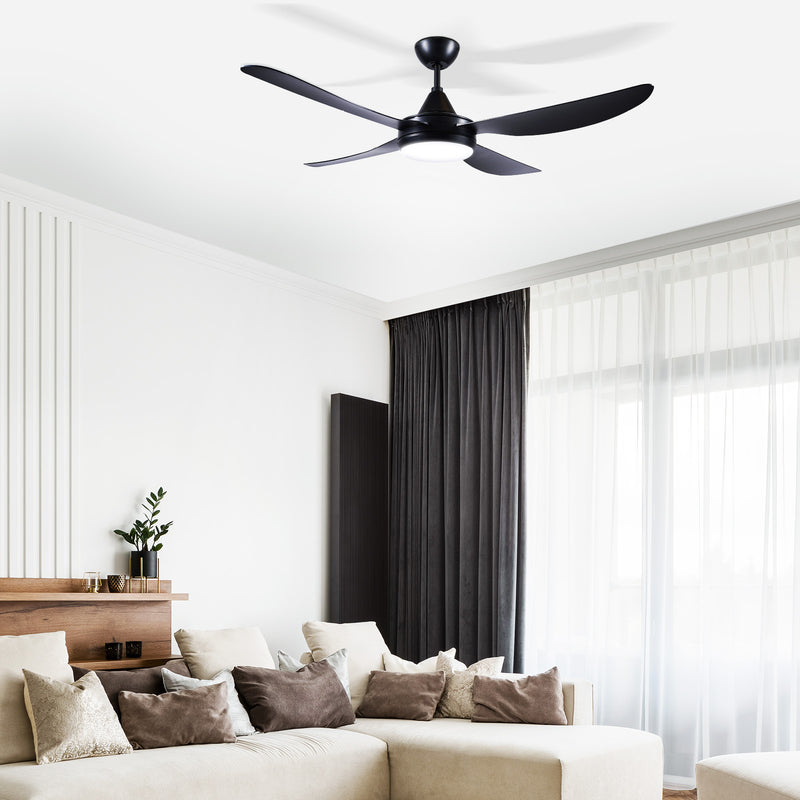

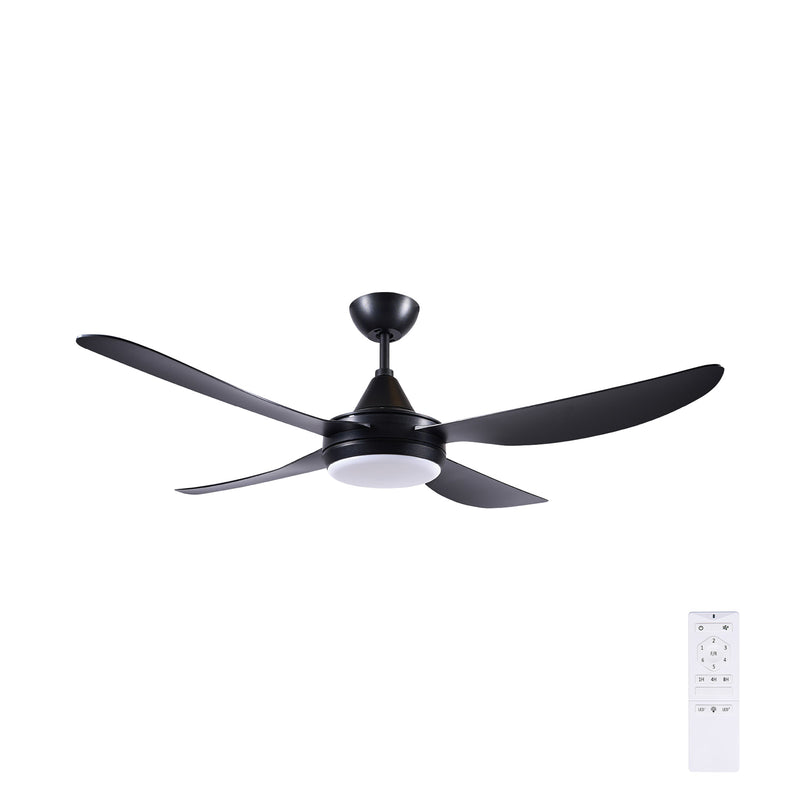

Brilliant Black Vector 56'' DC Ceiling Fan with Light


$346.50 List price: $451.10
+

Weight: 5.000 kg

Product Name/Title: Brilliant Black Vector 56'' DC Ceiling Fan with Light

Brand: Brilliant Lighting

SKU: 22697/06

Alternatively Known As: Vector Ceiling Fan, DC Ceiling Fan, 56 inch Ceiling Fan, LED Ceiling Fan

Technical Specifications
  • Max airflow: 16,200m³/hr
  • Operating voltage: 220-240V AC / 50Hz
  • Light type: LED
  • Light wattage: 18W
  • Light lumens: 1400lm
  • Colour temperature: 3000K / 4200K / 6000K
  • Blade material: Moulded ABS
  • Motor type: DC (Direct Current)
  • Blade pitch: 14° (effective)
  • Dimensions (H x L x W): 300mm x 1420mm x 1420mm
  • Weight: 5.0 kg
Key Features
  • Modern design with switchable Tri-Colour CCT light.
  • Quiet and efficient 40W DC motor with market-leading airflow.
  • 85% pre-assembled for fast installation.
  • 6-speed remote control included.
  • Reverse Summer/Winter function.
Professional Installation Requirements
  • Must be installed by a licensed electrician.
Applications
  • Residential: Living rooms, bedrooms, and outdoor undercover areas
  • Commercial: Offices, cafes, and retail spaces
Standards & Compliance
  • Complies with AS/NZS 60335-1, AS/NZS 60335-2-80, AS/NZS 60598-1, AS/NZS 60598-2-1.
Environmental Benefits
  • Energy-efficient DC motor reduces electricity consumption.
  • Dimmable LED light kit minimizes energy use and extends bulb life.
Warranty Information

3 years in-home warranty plus 3 years replacement (6-Year total).

Available Now

The Brilliant Black Vector 56'' DC Ceiling Fan with Light is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with durable performance.

Datasheet (22697_Datasheet.pdf, 746 Kb) [Download]

Instruction Manual (22697_IM.pdf, 1,322 Kb) [Download]

SDOC (22697_SDoC.pdf, 162 Kb) [Download]

Extension Rod Matrix (22697_Extension_Rod.pdf, 90 Kb) [Download]
