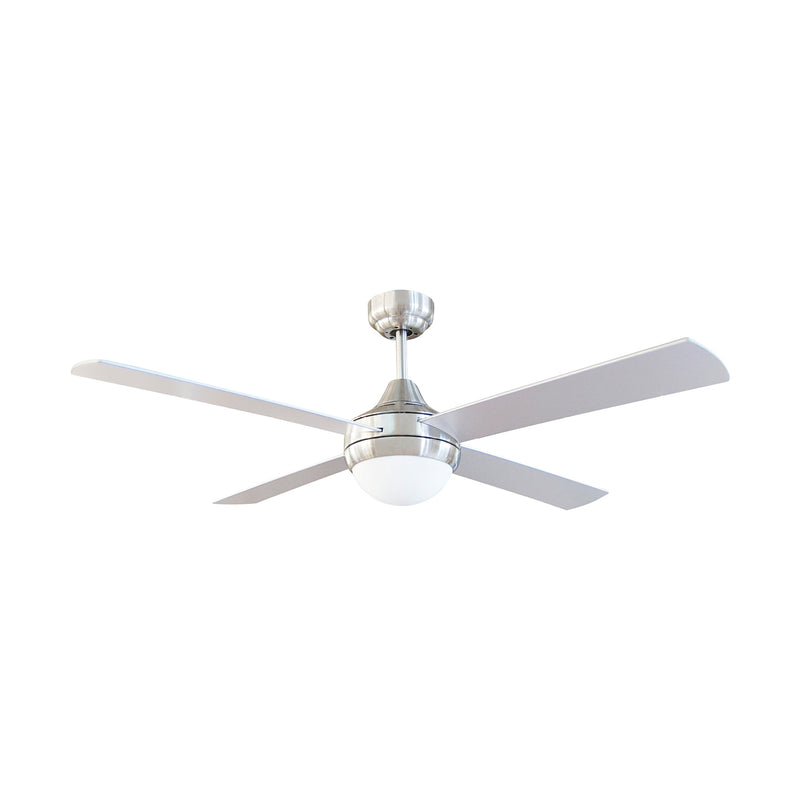

Brilliant Brushed Aluminium Tempo Plus 48'' AC 4-Blade Ceiling Fan with Light


$176.60 List price: $229.90
+

Weight: 5.000 kg

Product Name/Title: Brilliant Brushed Aluminium Tempo Plus 48'' AC 4-Blade Ceiling Fan with Light

Brand: Brilliant Lighting

SKU: 22273/13

Alternatively Known As: Tempo Plus Ceiling Fan, 48 inch Ceiling Fan, AC Ceiling Fan with Light

Technical Specifications
  • Max airflow: 7,699m³/hr
  • Operating voltage: 240V / 50Hz
  • Light type: Screw E27, 2 x 40W Max
  • Blade material: Painted Plywood (x4)
  • Motor type: AC (Alternate Current)
  • Ceiling rake: 10° max
  • Blade pitch: 11°
  • Dimensions (H x L x W): 300mm x 1220mm x 1220mm
  • Weight: 5.0 kg
Key Features
  • Contemporary design with four plywood blades.
  • Powerful 65W AC motor for efficient airflow.
  • 3-speed wall control with switch included.
  • Reversible All-Seasons technology for year-round use.
  • 85% pre-assembled for fast installation.
Professional Installation Requirements
  • Must be installed by a licensed electrician for optimal safety.
Applications
  • Residential: Living rooms, bedrooms, and dining areas
  • Commercial: Offices, cafes, and retail spaces
  • General: Any indoor location requiring effective air movement
Standards & Compliance
  • Complies with AS/NZS 60335-1 and AS/NZS 60335-2-80 for safety and performance standards.
Environmental Benefits
  • Energy-efficient motor reduces electricity consumption.
Warranty Information

3 years in-home warranty plus 3 years replacement (6-Year total warranty).

Available Now

The Brilliant Brushed Aluminium Tempo Plus 48'' AC 4-Blade Ceiling Fan with Light is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with durable performance.

Datasheet (22273_Datasheet_df49e1ac-446a-46e8-9171-3f179f878625.pdf, 1,509 Kb) [Download]

Instruction Manual (22273_IM_d9febbeb-711b-4167-8b24-4df67f2dbe41.pdf, 730 Kb) [Download]

SDOC (22273_SDoC_b72c8e42-5e40-4592-8a51-c9f567a63b9e.pdf, 149 Kb) [Download]

Extension Rod Matrix (22273_Extension_Rod_ff8ef87b-1586-4e3b-ba30-f9ad829ebf3b.pdf, 90 Kb) [Download]
