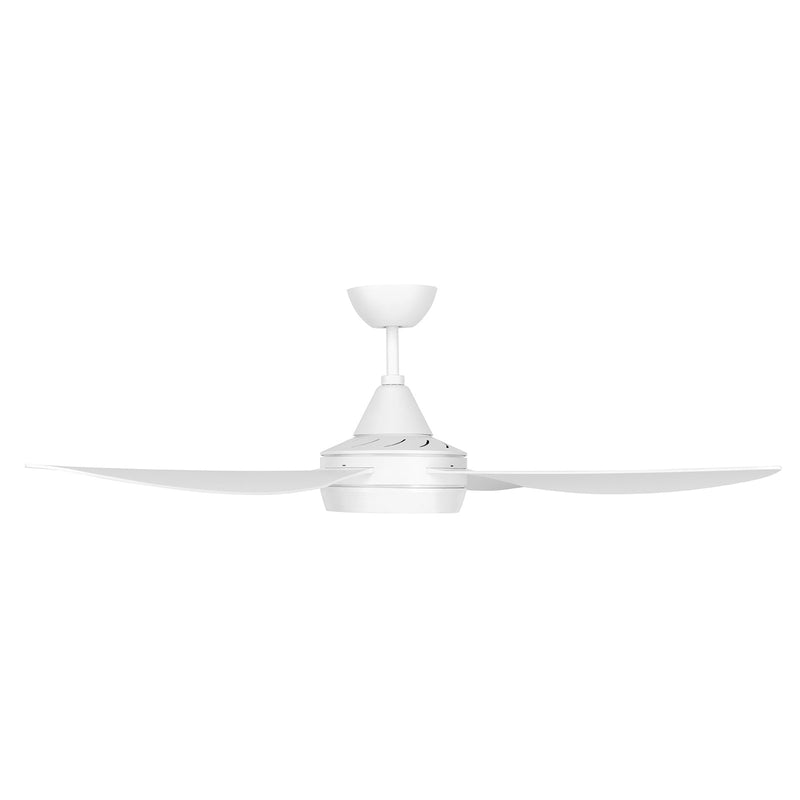

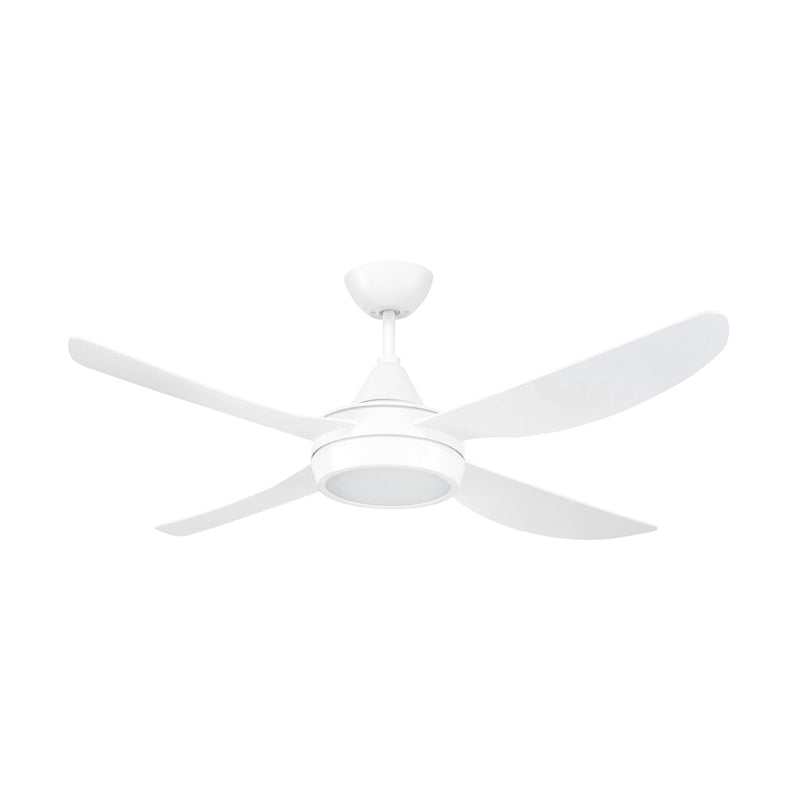

Brilliant White Vector 52” AC Ceiling Fan with Ezy-Fit ABS Blades


$255.60 List price: $332.80
+

Weight: 5.000 kg

Product Name/Title: Brilliant White Vector 52” AC Ceiling Fan with Ezy-Fit ABS Blades

Brand: Brilliant Lighting

SKU: 20168/05

Alternatively Known As: 52 inch ceiling fan, Vector ceiling fan, Brilliant ceiling fan

Technical Specifications
  • Fan size: 52 inch (1300mm)
  • Max airflow: 10,804m³/hr
  • Operating voltage: 240V / 50Hz
  • Light type: LED
  • Light wattage: 20W
  • Light lumens: 1000lm
  • Colour temperature: 4000K
  • Blade material: Moulded ABS
  • Blade pitch: 14° (effective)
  • Motor type: AC (Alternate Current)
  • Dimensions (H x L x W): 300mm x 1300mm x 1300mm
  • Weight: 5 kg
Key Features
  • Ezy-Fit blade system for quick assembly and installation.
  • Reversible motor for summer and winter modes.
  • Powerful 50W AC motor for efficient airflow.
Professional Installation Requirements
  • Must be installed by a licensed electrician.
Applications
  • Indoor: Living rooms, bedrooms, and offices

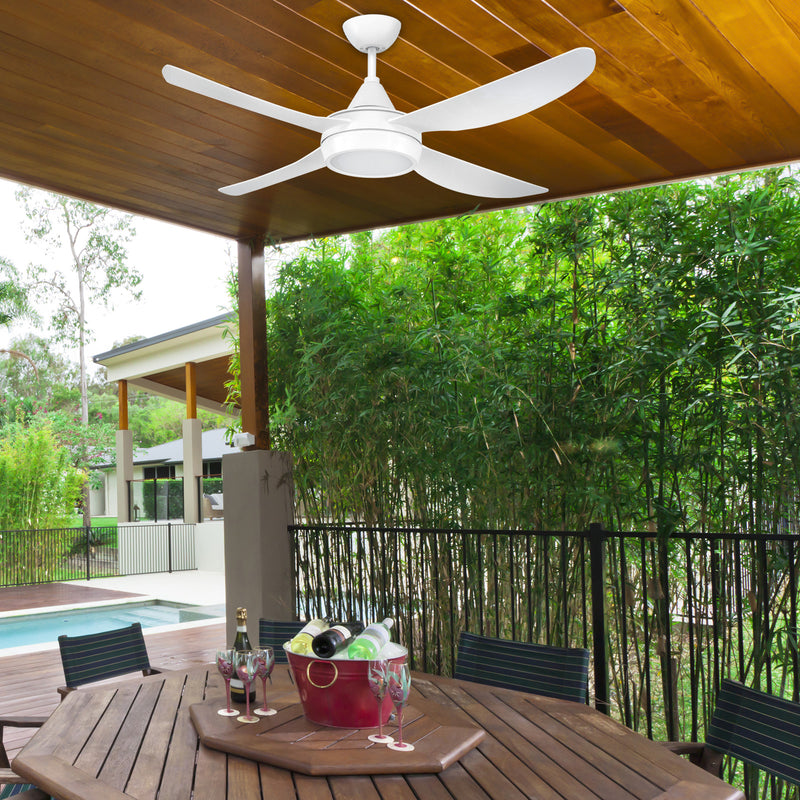

  • Outdoor: Undercover patios and alfresco areas
Standards & Compliance
  • Complies with AS/NZS 60335-1 and AS/NZS 60335-2-80 for safety and performance standards.
Environmental Benefits
  • Energy-efficient design reduces electricity consumption.
Warranty Information

3 years in-home warranty plus 3 years replacement (6-Year total warranty).

Available Now

The Brilliant White Vector 52” AC Ceiling Fan with Ezy-Fit ABS Blades is available now for immediate purchase. Ideal for enhancing air movement in both indoor and undercover outdoor spaces.

Datasheet (20168_Datasheet.pdf, 815 Kb) [Download]

Instruction Manual (20168_IM.pdf, 799 Kb) [Download]

SDOC (20168_SDoC.pdf, 510 Kb) [Download]

Extension Rod Matrix (20168_Extension_Rod.pdf, 90 Kb) [Download]
