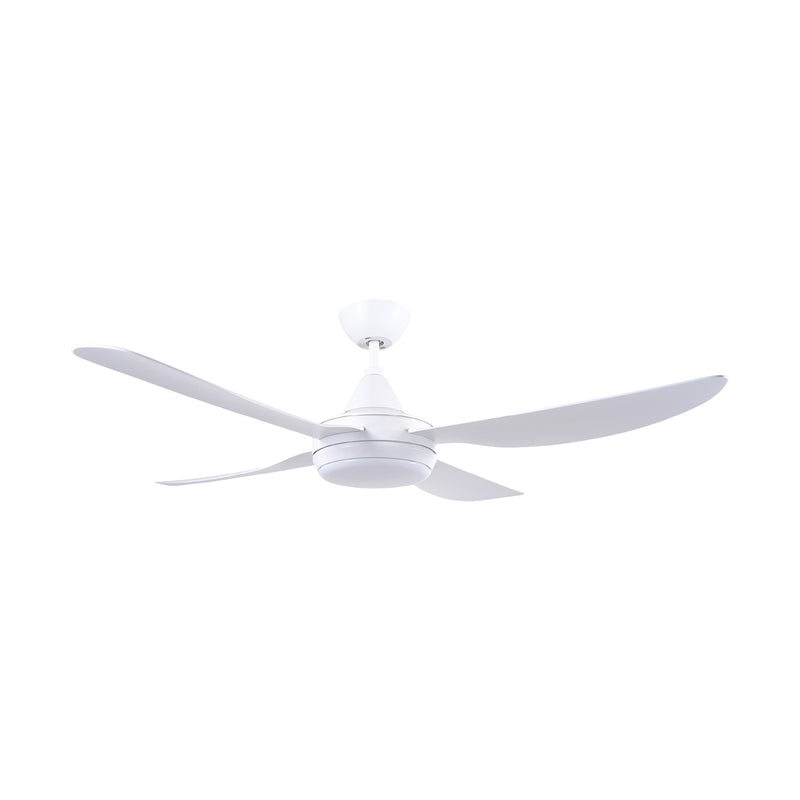

Brilliant White Vector-III 48’’ AC Ceiling Fan with CCT LED Light


$246.80 List price: $321.30
+

Weight: 5.000 kg

Product Name/Title: Brilliant White Vector-III 48’’ AC Ceiling Fan with CCT LED Light

Brand: Brilliant Lighting

SKU: 22291/05

Alternatively Known As: Vector-III Ceiling Fan, Brilliant Ceiling Fan, 48 inch Ceiling Fan, AC Ceiling Fan with LED Light

Technical Specifications
  • Max airflow: 12,600m³/hr
  • Operating voltage: 240V / 50Hz
  • Light type: LED
  • Light wattage: 18W
  • Light lumens: 1400lm
  • Colour temperature: 3000K/4200K/6000K
  • Motor wattage: 60W
  • Dimmable: Yes
  • Blade material: Moulded ABS
  • Control: Wall 3-speed with on/off switch (included)
  • Ceiling rake: 15° max
  • Blade pitch: 14° (effective)
  • Motor type: AC (Alternate Current)
  • Dimensions (H x L x W): 300mm x 1220mm x 1220mm
  • Weight: 5 kg
Key Features
  • CCT LED light with dimmable functionality
  • Patented Ezi-Fit blades for easy assembly
  • Durable corrosion and UV-resistant body
  • Reversible All-Seasons technology
  • 85% pre-assembled for fast installation
Professional Installation Requirements
  • Must be installed by a licensed electrician for optimal safety and performance.
Applications
  • Residential: Homes, apartments, indoor living spaces
  • Commercial: Offices, retail spaces, enclosed alfresco areas
Standards & Compliance
  • Complies with AS/NZS 60335-1, AS/NZS 60335-2-80, AS/NZS 60598-1, AS/NZS 60598-2-1 for safety and performance standards.
Environmental Benefits
  • Polyfoam-free packaging for easier disposal and reduced environmental impact.
Warranty Information

3 years in-home warranty plus 3 years replacement (6-Year total warranty).

Available Now

The Brilliant White Vector-III 48’’ AC Ceiling Fan with CCT LED Light is available now for immediate purchase. Ideal for residential and commercial spaces, combining modern design with durable performance.

Datasheet (22291_Datasheet_b8a35a34-eac2-4f1b-b556-764e72859884.pdf, 1,471 Kb) [Download]

Instruction Manual (22291_IM_b16f7ded-966f-4db9-a913-b2fcf2cdd875.pdf, 711 Kb) [Download]

SDOC (22291_SDoC_20f645c2-6075-4abb-8aee-4e7def637eba.pdf, 147 Kb) [Download]

Extension Rod Matrix (22291_Extension_Rod_e99df6f3-466a-467e-b163-d9bb1734af81.pdf, 90 Kb) [Download]
