5750WPL-GY

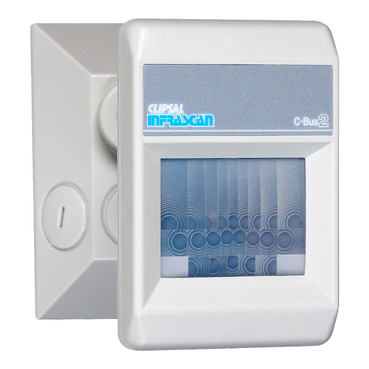

C-Bus Control and Management System, Passive Infrared Sensor, 110 degrees - Grey


$444.60 List price: $666.90
+

Weight: 0.340 kg

Product Name/Title: C-Bus Control and Management System, Passive Infrared Sensor, 110 degrees - Grey

Brand: Clipsal

SKU: 5750WPL-GY

Alternatively Known As: C-Bus PIR Sensor, Passive Infrared Occupancy Sensor

Technical Specifications
  • Rated operational voltage: 15...36 V DC
  • Rated current: 18 mA
  • Communication network type: C-Bus 100
  • Number of channels: 1
  • Local signalling: LED for status
  • Device mounting: Surface, wall/ceiling
  • Mounting height: 2.4 m
  • Fixing center: 84 mm
  • Ambient air temperature for operation: 0...45 °C
  • Detection face: Lateral: 12 m, Frontal: 18 m
  • Time delay range: 0...1 s (switch-on)
  • Duty cycle: 10-90 min
  • Dimensions (H x L x W): 111mm x 138mm x 74mm
  • Weight: 0.34 kg
Key Features
  • Passive Infrared (PIR) sensor with a 110-degree horizontal detection angle.
  • Adjustable light sensitivity down to 1 lux.
  • IP66 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal performance.
Applications
  • Residential: Staircase monitoring and lighting control
  • Commercial: Office lighting management and energy efficiency
Standards & Compliance
  • Complies with relevant Australian standards for safety and performance.
Environmental Benefits
  • Compliant with RoHS directives, contributing to reduced environmental impact.
Warranty Information

Standard warranty terms apply.

Available Now

The Clipsal C-Bus Control and Management System Passive Infrared Sensor is available now for immediate purchase. Ideal for smart home and commercial lighting solutions.
