5041NMML

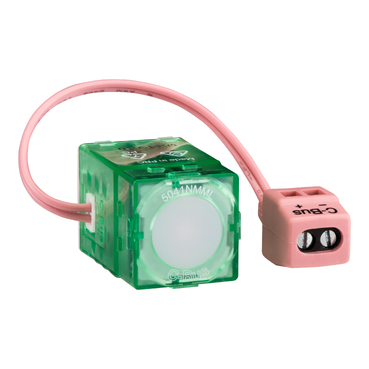

C-Bus, Master Module, 40 Series


$144.20 List price: $216.30
+

Weight: 0.013 kg

Product Name/Title: C-Bus, Master Module, 40 Series

Brand: Clipsal

SKU: 5041NMML

Alternatively Known As: C-Bus Master Module, Clipsal 40 Series Control Module

Technical Specifications
  • Rated operational voltage: 15...36 V DC
  • Communication network type: C-Bus
  • Input impedance: 100 kOhm at 1-1 kHz
  • Isolation voltage: 3.75 kV from C-Bus to mains
  • Current consumption: 18 mA
  • Ambient air temperature for operation: 0...45 °C
  • Relative humidity: 10...95 % non-condensing
  • Dimensions (H x L x W): 22.8mm x 36mm x 22.8mm
  • Weight: 0.013 kg
Key Features
  • Push-button interface for control
  • 255 possible dimmer levels
  • LED local signalling for status indication
  • Compatible with C-Bus Iconic and Pro Series wall plates
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Smart Home: Control of lighting and appliances
  • Commercial: Integration into building management systems
Standards & Compliance
  • Complies with AS/NZS CISPR 15, AS/NZS CISPR 14-1, AS/NZS 60669.2.1
Environmental Benefits
  • Compliant with RoHS and free of substances of very high concern.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal C-Bus Master Module 40 Series is available now for immediate purchase. Ideal for smart home and commercial applications.

5041NMML (5041NMML, 280 Kb) [Download]
