CLD4MA2DM24

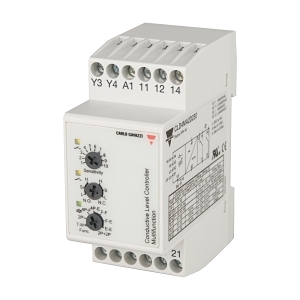

Carlo Gavazzi Level Sensor Level Controller 24V AC DC 4 Points SPST Relay Output DIN


$349.10 List price: $463.60
+

Weight: 0.130 kg

Product Name/Title: Carlo Gavazzi Level Sensor Level Controller 24V AC DC 4 Points SPST Relay Output DIN

Brand: NHP

SKU: CLD4MA2DM24

Alternatively Known As: Level Monitoring Relay, Conductive Level Controller

Technical Specifications
  • Rated Operation Current: 8 A
  • Rated Control Supply Voltage: 19.2-28.8 V AC/DC
  • Degree of Protection: IP20
  • Number of Inputs for Electrodes: 4
  • Physical Measurement Principle: Conductive
  • Min/Max Adjustable Off/Operate Delay Time: 1 s
  • Dimensions (H x L x W): 81mm x 60.2mm x 35.5mm
  • Weight: 0.13 kg
Key Features
  • 4 points SPST relay output for versatile control.
  • Adjustable response value sensitivity for precise operation.
  • DIN rail mounting for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Level monitoring in tanks and reservoirs
  • Commercial: Water treatment facilities
  • General: Any application requiring level control
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Efficient level monitoring helps in reducing waste and optimizing resource usage.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Carlo Gavazzi Level Sensor Level Controller is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable level monitoring.

Non-Returnable & Non-Cancellable
