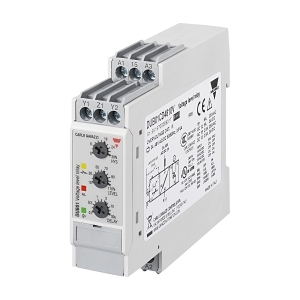

Product Name/Title: Carlo Gavazzi Monitoring Relay 1 Phase Over/Under Voltage 2-500V AC DC and 115-230V AC
Brand: NHP
SKU: DUB01CB23500V
Alternatively Known As: Voltage Monitoring Relay, AC/DC Voltage Relay, Over/Under Voltage Relay
Technical Specifications
- Type of voltage measuring range: AC/DC
- Voltage measuring range: 2-20 V, 5-50 V, 20-200 V, 50-500 V
- Rated frequency: 45-65 Hz
- Rated operation current: 8 A
- Control supply voltage: 230 V AC, 115 V AC
- Over voltage category: III
- Degree of protection: IP20
- Material contact: Silver tin-oxide
- Dimensions (H x L x W): 83.5mm x 99.5mm x 22.5mm
- Weight: 0.15 kg
Key Features
- AC/DC voltage measuring range from 2-500V
- Single-phase over and under voltage monitoring
- Adjustable delay on energization time
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Monitoring voltage levels in machinery and equipment
- Commercial: Ensuring voltage stability in electrical systems
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Enhances energy efficiency by enabling accurate monitoring of electrical consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Monitoring Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring voltage monitoring.
