DUB02CT23

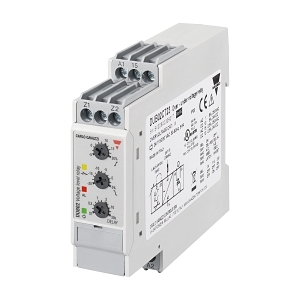

Carlo Gavazzi Monitoring Relay 1 Phase Over/Under Voltage 24 and 115 and 230V AC Own Supply

$408.20 List price: $542.10
+ −
30 Days Return Delivery Options
Weight: 0.150 kg

Product Name/Title: Carlo Gavazzi Monitoring Relay 1 Phase Over/Under Voltage 24 and 115 and 230V AC Own Supply

Brand: NHP

SKU: DUB02CT23

Alternatively Known As: Voltage Monitoring Relay, AC Voltage Relay, Over/Under Voltage Relay

Technical Specifications
  • Type of Voltage Measuring Range: AC
  • Voltage Measuring Range: 19.2-28.8 V, 92-138 V, 184-275 V
  • Rated Frequency: 45-65 Hz
  • Single Phase Under Voltage Possible: Yes
  • Single Phase Over Voltage Possible: Yes
  • Number of Contacts: 1 Change Over Contact
  • Rated Operation Current: 8 A
  • Rated Operation Current at AC 15 230 V: 2.5 A
  • Rated Operation Current at DC 12-24 V: 5 A
  • Rated Operation Current at DC 13-24 V: 2.5 A
  • Over Voltage Category: III
  • Type of Electric Connection: Screw Connection
  • Min Adjustable Delay on Energization Time: 1 s
  • Max Permitted Delay on Energization Time: 6 s
  • Min Adjustable Off Delay Time: 0.1 s
  • Max Permitted Off Delay Time: 30 s
  • Material Contact: Silver Tin-Oxide
  • Degree of Protection: IP20
  • Storage Temperature: -30-80 °C
  • Dimensions (H x L x W): 83.5mm x 99.5mm x 22.5mm
  • Weight: 0.15 kg
Key Features
  • Self-powered operation with adjustable delay settings.
  • Suitable for DIN rail mounting.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Monitoring voltage levels in machinery and equipment
  • Commercial: Ensuring voltage stability in electrical systems
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Enhances energy efficiency by enabling accurate monitoring of electrical consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Carlo Gavazzi Monitoring Relay 1 Phase Over/Under Voltage is available now for immediate purchase. Ideal for industrial and commercial applications requiring voltage monitoring.
