DPB02CM48

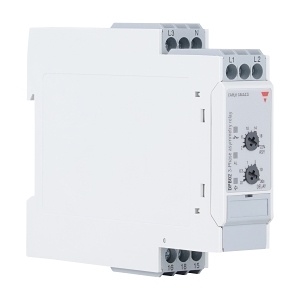

Carlo Gavazzi Monitoring Relay 3 Phase Neut Over/Under/Voltage-Phase-Seq/Phase-Loss 380-480VAC 1CO


$504.90 List price: $670.40
+

Weight: 0.500 kg

Product Name/Title: Carlo Gavazzi Monitoring Relay 3 Phase Neut Over/Under/Voltage-Phase-Seq/Phase-Loss 380-480VAC 1CO

Brand: NHP

SKU: DPB02CM48

Alternatively Known As: Phase Monitoring Relay, Voltage Monitoring Relay, Over/Under Voltage Relay

Technical Specifications
  • Rated Operating Voltage: 380-480 V
  • Rated Frequency: 50-60 Hz
  • Rated Operation Current: 8 A
  • Voltage Type for Actuating: Self powered
  • Over Voltage Category: III
  • Type of Electric Connection: Screw connection
  • Min Adjustable Delay on Energization Time: 1 s
  • Max Permitted Delay on Energization Time: 6 s
  • Min Adjustable Off Delay Time: 0.1 s
  • Max Permitted Off Delay Time: 30 s
  • Material Contact: Silver tin-oxide
  • Degree of Protection: IP20
  • Storage Temperature: -30-80 °C
  • Dimensions (H x L x W): 83.5mm x 99.5mm x 22.5mm
  • Weight: 0.5 kg
Key Features
  • Phase failure detection
  • Phase sequence monitoring
  • Phase imbalance monitoring
  • Self-powered operation
  • DIN rail mounting
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Monitoring electrical systems in manufacturing and processing plants
  • Commercial: Ensuring power quality in commercial buildings
  • General: Any application requiring phase monitoring and protection
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Helps prevent electrical failures and reduces energy waste.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Carlo Gavazzi Monitoring Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable phase monitoring.
