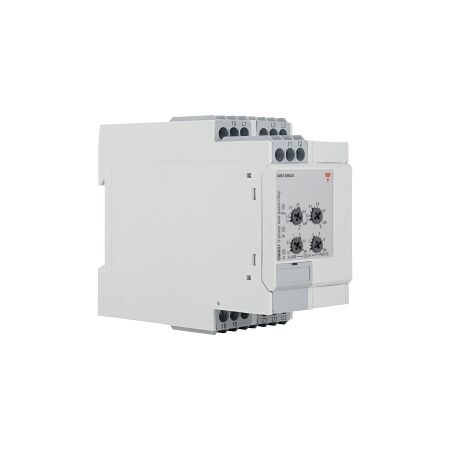

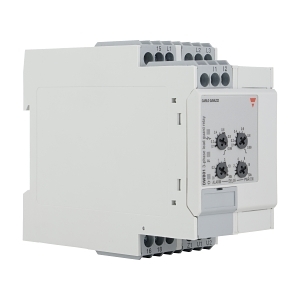

Product Name/Title: Carlo Gavazzi Monitoring Relay 3 Phase Over/Under Power Factor Own Supply 380-480 AC 1 Contact
Brand: NHP
SKU: DWB01CM4810A
Alternatively Known As: Power Factor Relay, Monitoring Relay, 3 Phase Relay
Technical Specifications
- Rated Voltage: 380-480 V
- Measurement Current: 0.5-5 A
- Current Measuring Range: 1-10 A
- Rated Operation Frequency: 45-65 Hz
- Number of Phases: 3
- Adjustable Setting Value for Cos Phi: 0.1-0.99
- Rated Operation Current: 8 A
- Min Adjustable Delay on Energization Time: 1 s
- Max Permitted Delay on Energization Time: 30 s
- Over Voltage Category: III
- Degree of Protection: IP20
- Ambient Temperature During Operating: -20-60 °C
- Storage Temperature: -30-80 °C
- Dimensions (H x L x W): 83.5mm x 99.5mm x 45mm
- Weight: 0.25 kg
Key Features
- Self-powered operation with adjustable setting value for power factor.
- Suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power monitoring in manufacturing facilities
- Commercial: Energy management in commercial buildings
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Helps in optimizing energy consumption, reducing overall carbon footprint.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Monitoring Relay 3 Phase Over/Under Power Factor is available now for immediate purchase. Ideal for industrial and commercial energy management.
Non-Returnable & Non-Cancellable
