PIB02CB23150MV

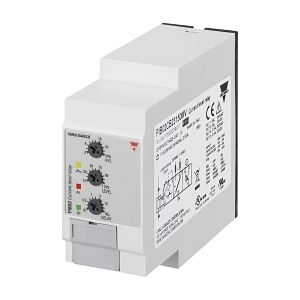

Carlo Gavazzi Monitoring Relay Over or Under Current via Ext-Shunt 6-150mVACDC and 115-230V AC 1 CO


$479.50 List price: $636.70
+

Weight: 0.150 kg

Product Name/Title: Carlo Gavazzi Monitoring Relay Over or Under Current via Ext-Shunt 6-150mVACDC and 115-230V AC 1 CO

Brand: NHP

SKU: PIB02CB23150MV

Alternatively Known As: Current Monitoring Relay, Over/Under Current Relay

Technical Specifications
  • Current Measuring Range: 0.01-0.15 A
  • Rated Frequency: 45-65 Hz
  • Rated Operation Current (IE): 8 A
  • Control Supply Voltage: 115 V AC / 230 V AC
  • Degree of Protection: IP20
  • Material Contact: Silver tin-oxide
  • Min Adjustable Delay on Energization Time: 1 s
  • Max Permitted Delay on Energization Time: 6 s
  • Dimensions (H x L x W): 80mm x 94mm x 36mm
  • Weight: 0.15 kg
Key Features
  • Monitoring relay for over and under current detection.
  • Single-phase operation with adjustable delay on energization.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Monitoring electrical systems for over or under current conditions.
  • Commercial: Ensuring safety in electrical installations.
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Enhances safety in electrical systems, reducing the risk of damage and energy waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Carlo Gavazzi Monitoring Relay Over or Under Current is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable
