SKU: DIB01CB235A

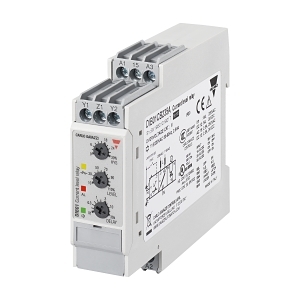

Carlo Gavazzi Monitoring Relay Over/Under Current via Int-Shnt 0.1-5A ACDC and 115-230VAC 1CO

$462.60 List price: $614.30

+ −

30 Days Return Delivery Options

Weight: 0.150 kg

Description

Product Name/Title: Carlo Gavazzi Monitoring Relay Over/Under Current via Int-Shnt 0.1-5A ACDC and 115-230VAC 1CO

Brand: NHP

SKU: DIB01CB235A

Alternatively Known As: Current Monitoring Relay, Over/Under Current Relay, Carlo Gavazzi Relay

Technical Specifications

Current Measuring Range: 0.1-5 A
Rated Frequency: 45-65 Hz
Control Supply Voltage: 115 V AC / 230 V AC
Number of Contacts: 1 CO
Degree of Protection: IP20
Material Contact: Silver tin-oxide
Min Adjustable Delay on Energization Time: 1 s
Max Permitted Delay on Energization Time: 6 s
External Current Transformer: Yes
Dimensions (H x L x W): 83.5mm x 99.5mm x 22.5mm
Weight: 0.15 kg

Key Features

Monitoring relay for over/under current with a measuring range of 0.1-5 A.
Single-phase under and over current detection.
Suitable for DIN rail mounting.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Monitoring electrical systems for over/under current conditions.
Commercial: Ensuring safety in electrical installations.

Standards & Compliance

Complies with AS/NZS 3000 for wiring rules and safety standards.

Environmental Benefits

Helps prevent electrical failures and reduces energy waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Carlo Gavazzi Monitoring Relay Over/Under Current is available now for immediate purchase. Ideal for industrial and commercial applications.
