DIB01CB23500MA

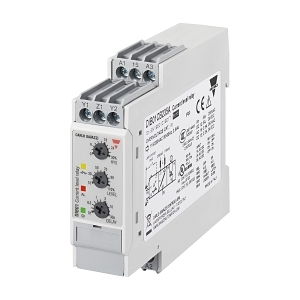

Carlo Gavazzi Monitoring Relay Over/Under Current via Int-Shnt 10-500mA ACDC and 115-230VAC 1CO


$462.60 List price: $614.30
+

Weight: 0.150 kg

Product Name/Title: Carlo Gavazzi Monitoring Relay Over/Under Current via Int-Shnt 10-500mA ACDC and 115-230VAC 1CO

Brand: NHP

SKU: DIB01CB23500MA

Alternatively Known As: Current Monitoring Relay, Over/Under Current Relay

Technical Specifications
  • Current Measuring Range: 0.01-0.5 A
  • Rated Frequency: 45-65 Hz
  • Rated Operation Current (IE): 8 A
  • Control Supply Voltage: 115 V AC / 230 V AC
  • Over Voltage Category: III
  • Degree of Protection: IP20
  • Material Contact: Silver tin-oxide
  • Min Adjustable Delay on Energization Time: 1 s
  • Max Permitted Delay on Energization Time: 6 s
  • Dimensions (H x L x W): 83.5mm x 99.5mm x 22.5mm
  • Weight: 0.15 kg
Key Features
  • Measures current from 10-500mA ACDC and 115-230VAC.
  • Single-phase under and over current detection.
  • Suitable for DIN rail mounting.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery and equipment monitoring
  • Commercial: Electrical systems protection
  • General: Any application requiring current monitoring
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules and safety standards.
Environmental Benefits
  • Helps prevent electrical failures and reduces energy waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Carlo Gavazzi Monitoring Relay Over/Under Current is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable current monitoring.
