PMD8RI

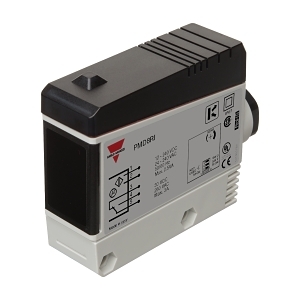

Carlo Gavazzi Photoelectric Sensor Diffuse Plastic SN AC DC Relay NO NC Range 800mm


$248.60 List price: $330.20
+

Weight: 0.300 kg

Product Name/Title: Carlo Gavazzi Photoelectric Sensor Diffuse Plastic SN AC DC Relay NO NC Range 800mm

Brand: NHP

SKU: PMD8RI

Alternatively Known As: Diffuse Photoelectric Sensor, Infrared Sensor, Object Detection Sensor

Technical Specifications
  • Voltage Type: AC/DC
  • Rated Control Supply Voltage: 21.6-264 V AC, 10.8-264 V DC
  • Max Output Current: 0.13 mA
  • Response Time: 20 ms
  • Switching Frequency: 20 Hz
  • Degree of Protection: IP67
  • Sensing Type: Standard diffuse
  • Type of Light: Infrared light
  • Wavelength of the Sensor: 880 nm
  • Beam Angle: 24°
  • Max Switching Distance: 800 mm
  • Ambient Temperature: -25 to 55 °C
  • Dimensions (H x L x W): 65mm x 81mm x 25mm
  • Weight: 0.3 kg
Key Features
  • Manual adjustment for easy setup.
  • Relay contact output with NO/NC functionality.
  • IP67 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial automation
  • Safety applications
  • Object detection
Standards & Compliance
  • Complies with relevant safety standards.
Environmental Benefits
  • Energy-efficient operation reduces power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Carlo Gavazzi Photoelectric Sensor is available now for immediate purchase. Ideal for industrial automation and safety applications.
