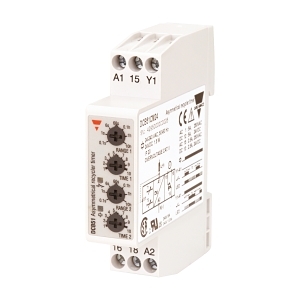

Product Name/Title: Carlo Gavazzi Timer Relay Asymmetrica Recycler 24VDC and 24-240VAC Supply 1CO 0.1Sec-100Hr 17.5mm
Brand: NHP
SKU: DCB51CM24
Alternatively Known As: Timer Relay, Delay Timer, Programmable Timer Relay
Technical Specifications
- Voltage Type for Actuating: AC
- Rated Control Supply Voltage (DC): 24 V
- Rated Control Supply Voltage (AC 60 Hz): 24-240 V
- Rated Control Supply Voltage (AC 50 Hz): 24-240 V
- Number of Outputs: 1 CO
- Rated Operation Current (DC 12-24 V): 0.2 A
- Rated Operation Current (DC 13-24 V): 2.5 A
- Rated Operation Current (AC 15-250 V): 2.5 A
- Type of Electric Connection: Screw connection
- Time Range: 0.1-360000 s
- Time Setting Accuracy: 5 %
- Power Supply Reset Time: 50 ms
- Power Consumption: 0.5 VA
- Electrical Lifespan Control Contacts: 200000 cycles
- Mechanical Lifetime Control Contacts: 30000000 cycles
- Max Shock Acceleration: 50 g
- Max Vibration Acceleration: 4 m/s²
- Max Vibration Frequency Operational: 100 Hz
- Operating Temperature: -25-45 °C
- Dimensions (H x L x W): 80mm x 109mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Versatile voltage supply range of 24VDC and 24-240VAC.
- Adjustable time range from 0.1 seconds to 100 hours.
- Compact design suitable for DIN rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
- General: Any application requiring timed relay functions
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Complies with AS/NZS 60950 for safety and performance standards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Timer Relay Asymmetrica Recycler is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise timing control.
