HI458

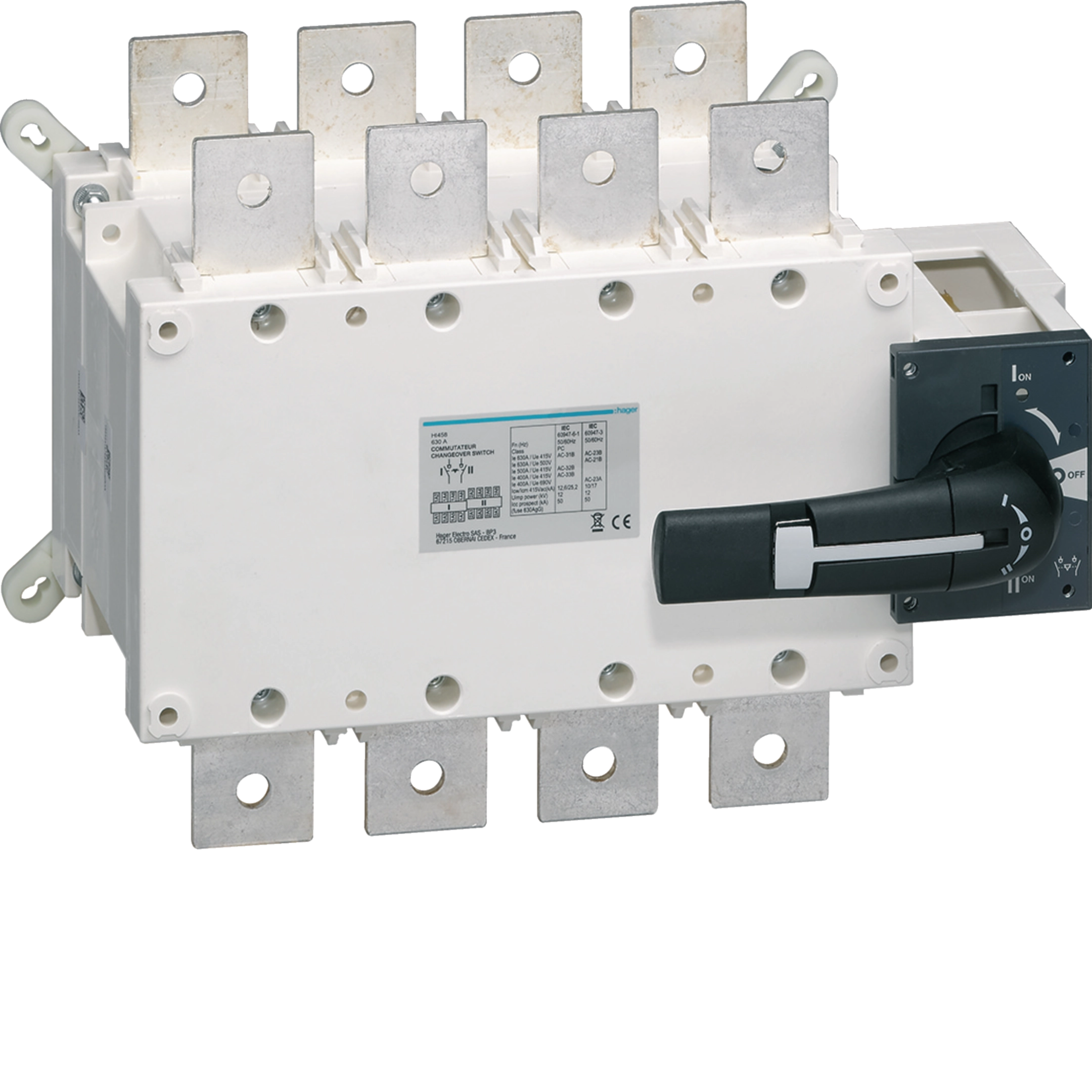

Change-over switch 4P 630A


$3,521.60 List price: $4,503.00
+

Weight: 15.000 kg

Product Name/Title: Change-over switch 4P 630A

Brand: Hager

SKU: HI458

Alternatively Known As: Manual Transfer Switch, Load Break Switch, Changeover Switch

Technical Specifications
  • Rated insulation voltage: 1000 V
  • Rated impulse withstand voltage: 12000 V
  • Rated short-time withstand current: 17 kA
  • Rated conditional short-circuit current: 50 kA
  • Rated operational power under 400 V AC: 414000 W
  • Total power loss under IN: 129.60 W
  • Number of poles: 4
  • Frequency: 50 - 60 Hz
  • Operating temperature: -20 - 70 °C
  • Connection cross-section for rigid conductor: 2x 185 mm²
  • Dimensions (H x L x W): 260mm x 295mm x 379mm
  • Weight: 15 kg
Key Features
  • Rated current of 630 A for robust performance.
  • IP00 ingress protection for indoor use.
  • Interlockable cover for enhanced safety.
Professional Installation Requirements
  • Professional installation by a qualified electrician is required for optimal safety and compliance.
Applications
  • Industrial: Power distribution systems
  • Commercial: Large buildings and facilities
  • General: Any application requiring reliable power switching
Standards & Compliance
  • Complies with AS/NZS 60947 for safety and performance standards.
Environmental Benefits
  • Commitment to reducing carbon footprint and improving environmental performance.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager Change-over Switch 4P 630A is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
