| Part No. | Finish | Description | Size | Box/Bndl Qty |
|
P1008SS
|

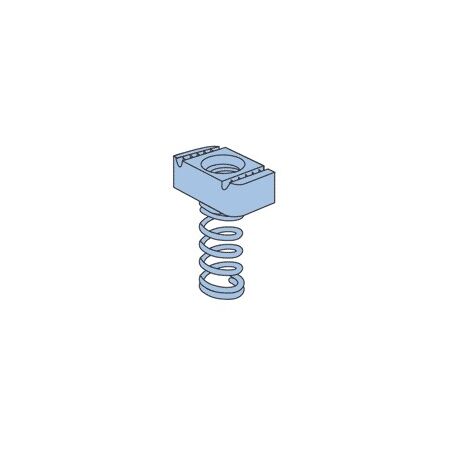

Stainless Steel-316 | CHANNEL NUT W. SPRING | M10 | 200 |
Channel Nuts- General Information
Price is for box of 200
Material
Unistrut spring nuts are manufactured from steel bars, and after machining operations are completed, zinc plated nuts are case hardened. Hardening assures positive biting action into the inturned edge of the Unistrut channel. Similar nuts without springs are also available. Stud nuts are manufactured by welding studs to UNISTRUT nuts except for USB series which are drop forged. Nuts and bolts are manufactured to AS1111 & AS1112.
Threads – All threads on the nuts and bolts are metric coarse.
Design Bolt Torque – Refer to Engineering Data Page 118
Finishes –
Nuts and bolts are zinc plated to Australian Standards AS1897, selected sizes also available in hot dipped galvanised to AS1214.
**For further product information please see attachment Catalogue.
