NSYCR100WU2C

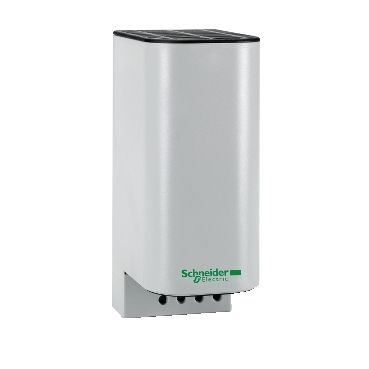

ClimaSys, Compact resistance heater, heating resistance 100W,110-250V insulate


$352.30 List price: $528.50
+

Weight: 0.356 kg

Product Name/Title: ClimaSys, Compact resistance heater, heating resistance 100W,110-250V insulate

Brand: Clipsal

SKU: NSYCR100WU2C

Alternatively Known As: Resistance Heater, Industrial Heater, Compact Heater

Technical Specifications
  • Power: 100W
  • Input Voltage: 120-240V AC 50/60Hz
  • Material: Extruded aluminium body with plastic cover
  • Electrical Insulation Class: Class II
  • IP Rating: IP20
  • Operating Position: Vertical
  • Electrical Connection: 4 screw terminals 2.5 mm²
  • Dimensions (H x L x W): 150mm x 90mm x 60mm
  • Weight: 0.356 kg
Key Features
  • Compact design for easy installation on DIN rail.
  • IP20 rated for indoor use.
  • Wide operating temperature range from -40 to 70 °C.
Professional Installation Requirements
  • Electrical protection is needed; heaters must be installed with a thermal controller in an air-sealed enclosure.
Applications
  • Industrial: Heating applications in various environments
  • Commercial: Suitable for workshops and maintenance areas
Standards & Compliance
  • Product certifications: ULVDE
Environmental Benefits
  • Complies with China RoHS regulations.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The ClimaSys Compact Resistance Heater 100W is available now for immediate purchase. Ideal for industrial and commercial heating applications.

NSYCR100WU2C (NSYCR100WU2C, 216 Kb) [Download]
