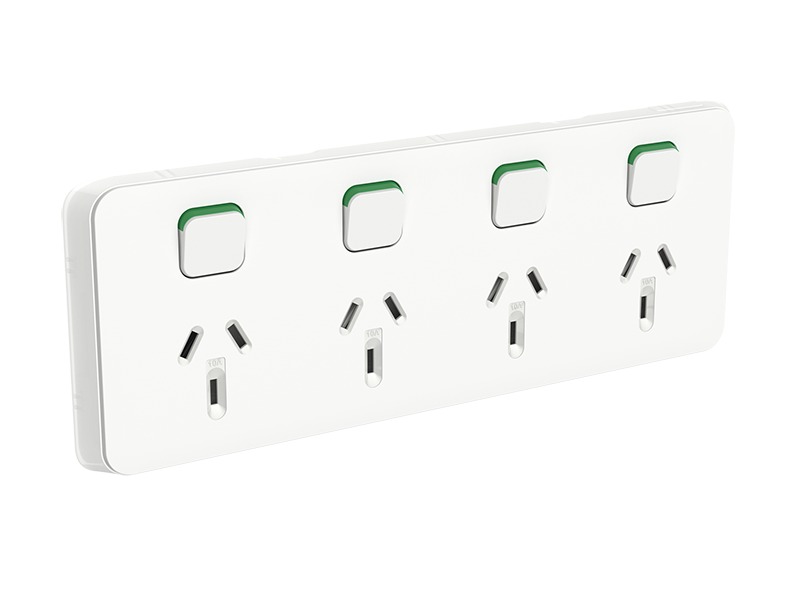

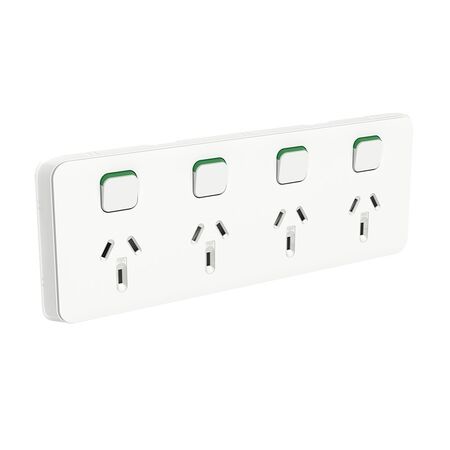

3015/4 Clipsal Iconic - Quad Switch Socket Outlet, Horizontal Mount, 250V, 10A
Clipsal Iconic is a modern electrical accessories range, based on a slim, sleek, clean design that is easy to customise and blends in perfectly with any environment.
Clipsal Iconic - Quad Switch Socket Outlet, Horizontal Mount, 250V, 10A
Product Specifications and Characteristics (ETIM Industrial Standard)
These specifications and characteristics outline physical, mechanical, electrical details.
| Type | Value |
|---|---|
| Depth | 32 mm |
| Height | 214 mm |
| Material | PC (polycarbonate) for skin |
| Width | 78 mm |
| Brand Name | Clipsal Iconic |
| Product or component type | Socket, 4 |
| Device mounting | Flush |
| Device presentation | Grid plate with skin |
| Outlet poles configuration | 1P + E with shutter |
| Outlet standard | Australian/New Zealand |
| Outlet standard description | With earthing contact |
| Ground lug position | Straight 180 degree position |
| Fixing mode | By screws, horizontal |
| Surface finish | Matt |
| Type of packing | Polybag |
| Quantity per set | Set of 1 |
| Sale per indivisible quantity | 1 |
| Rated current | 10 A, 250 V, AC, 50 Hz |
| Ambient air temperature for operation | [0,45] deg C |
| Relative humidity | [10,95] percent |
| Electrical durability | 12000 cycles |
| Connections - terminals | 3 x screw terminals |
| Shape of screw head | Philips No 2 (PH2) |
| Number of cables | Up to 4 |
| Clamping connection capacity | 2.5 square mm (rigid) |
| Wire stripping length | 16 mm |
| Embedding depth | 24 mm |
| Product weight | 0.216 kg |
| Standards | AS/NZS 3112 |
| Product certifications | RCM |
