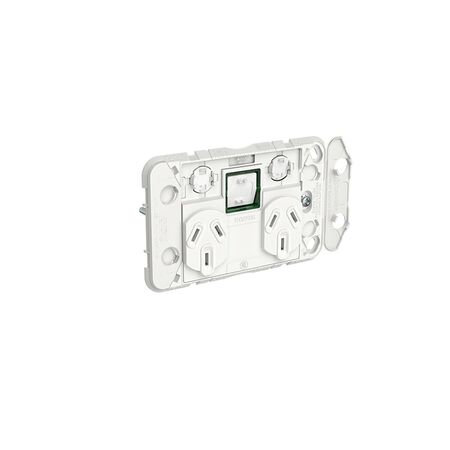

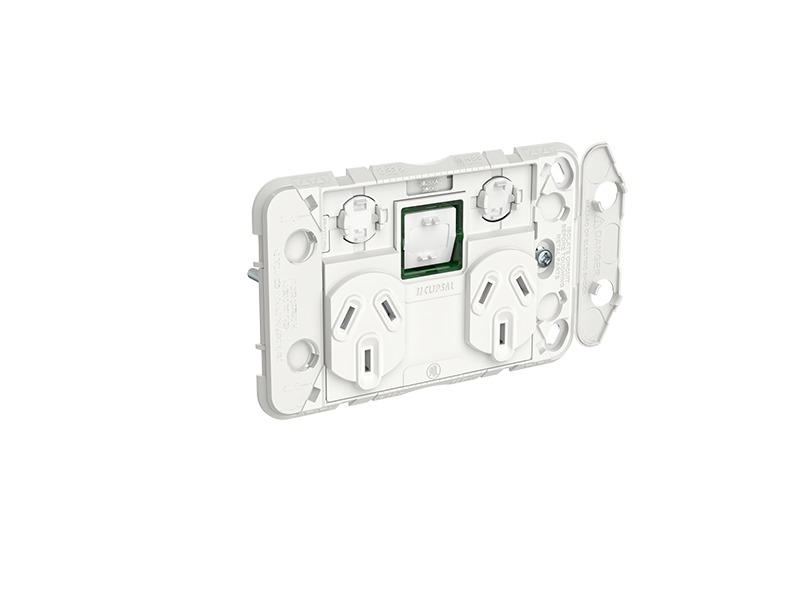

3025XAG Clipsal Iconic - Twin Switch Socket Outlet Grid, Horizontal Mount, 250V, 10A with Removable Extra Switch
Clipsal Iconic is a modern electrical accessories range, based on a slim, sleek, clean design that is easy to customise and blends in perfectly with any environment.
Clipsal Iconic - Twin Switch Socket Outlet Grid, Horizontal Mount, 250V, 10A with Removable Extra Switch
Product Specifications and Characteristics (ETIM Industrial Standard)
These specifications and characteristics outline physical, mechanical, electrical details.
Type | Value |
---|---|
Brand Name | Clipsal Iconic |
Depth | 31 mm |
Height | 115 mm |
Material | Grid plate - PC (polycarbonate) Flaps - PP (polypropylene) Shutter - POM (polyoxymethylene) Switch - PC (polycarbonate) Switch - PA66 Locking bar - POM (polyoxymethylene) |
Switch function | 2-way |
Width | 71 mm |
Product or component type | Switch and socket-outlet |
Device mounting | Flush |
Device presentation | Gridplate with switch |
Outlet poles configuration | 1P + E |
Outlet standard | Australian/New Zealand |
Outlet standard description | With earthing contact |
Ground lug position | Straight 180deg position |
Fixing mode | By screw |
Colour tint | White |
Surface finish | Matt |
Type of packing | Polybag |
Quantity per set | Set of 10 |
Sale per indivisible quantity | 1 |
Ambient air temperature for storage | [0,60] deg C |
Rated current | Socket - 10 A Switch - 10 AX |
Ambient air temperature for operation | [0,45] deg C |
Electrical durability | 12000 cycles |
Connections - terminals | Screw terminal |
Shape of screw head | Philips No 2 (PH2) Square drive no 1 (SQ1) |
Wire stripping length | 16 mm |
Embedding depth | mm |
Product weight | 0.071 kg |
Standards | AS/NZS 3112 AS/NZS 60669.1 AS/NZS 3133 |
Product certifications | RCM |
[Ue] rated operational voltage | 250 V, AC, 50 Hz |
Ambient humidity for operation | [10,95] Percent |
Number of terminals | 3 |
Socket number | 2 |
Cover type | With shutter |
Mounting mode | Horizontal |
Integrated connection type | |
Service life in cycles | 12000 cycles |
Cables | Up to 4, 2.5 square mm, stranded Up to 4, 2.5 square mm, flexible Up to 4, 2.5 square mm, rigid |
